Figure 5
From: Gas flux cyclic regime at an open vent magmatic column inferred from seismic and acoustic records

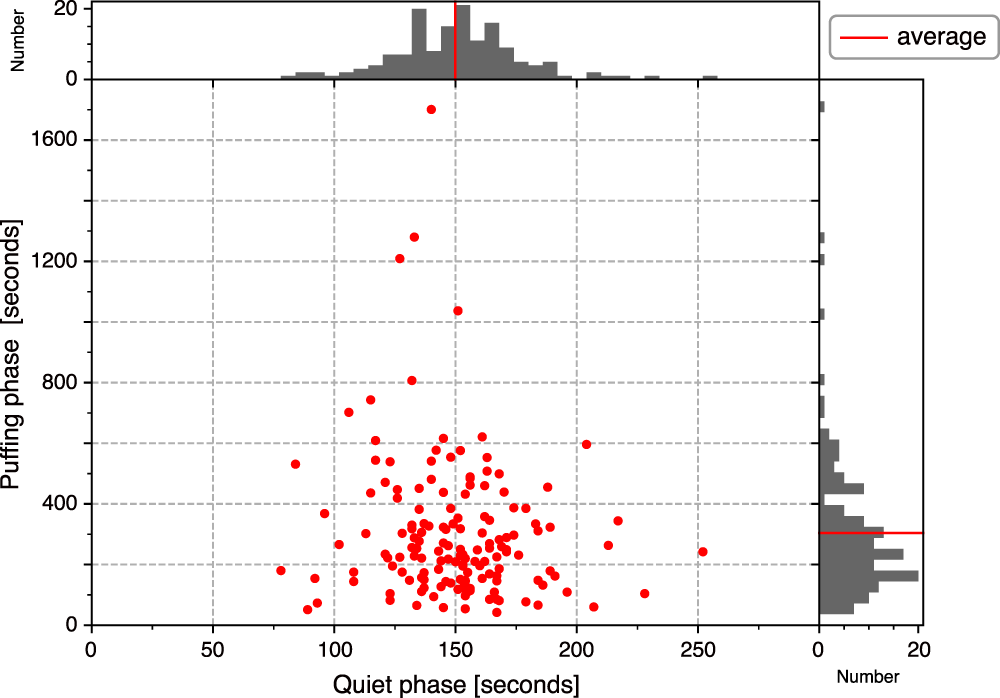

Relationship between the duration of the quiet phase (QP) and the puffing phase (PP) in each cycle. One day long data on July 28, 2014 shown in Fig. 2 were investigated and 150 cycles were identified. Duration of the QP is distributed in the narrow range of 149.85 ± 26.79 s and that of the PP widely varies in the range of 303.95 ± 233.05 s.
