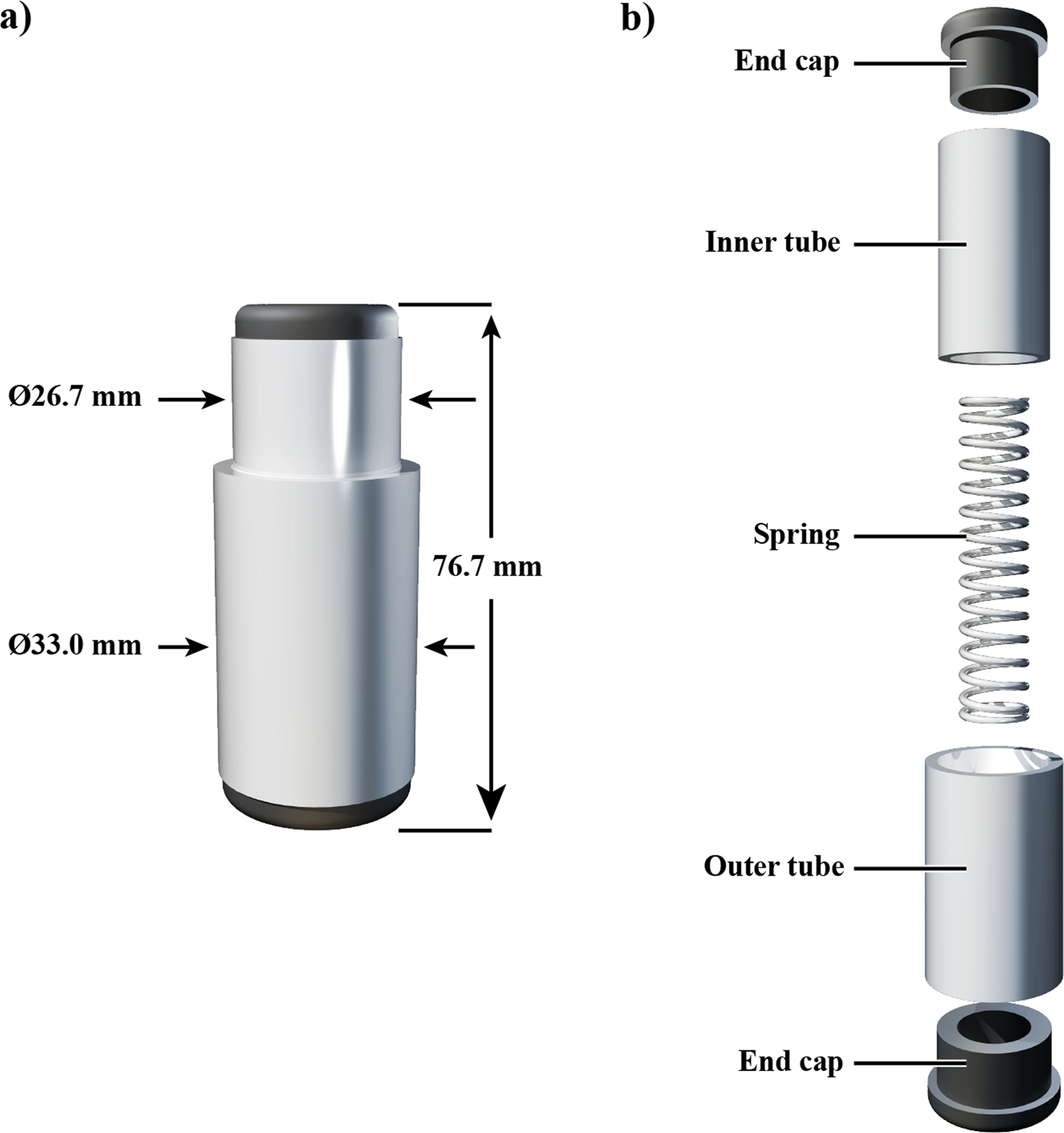

Figure 2

Spring cell design. (a) The overall dimensions of the assembled spring cells detailing diameters of the inner tube and outer tube, as well as the overall height. (b) An exploded assembly view of the spring cell components detailing the end caps, inner tube, outer tube, and spring.
