Figure 8

From: Comparative transcriptome profiling of low light tolerant and sensitive rice varieties induced by low light stress at active tillering stage

Figure 8

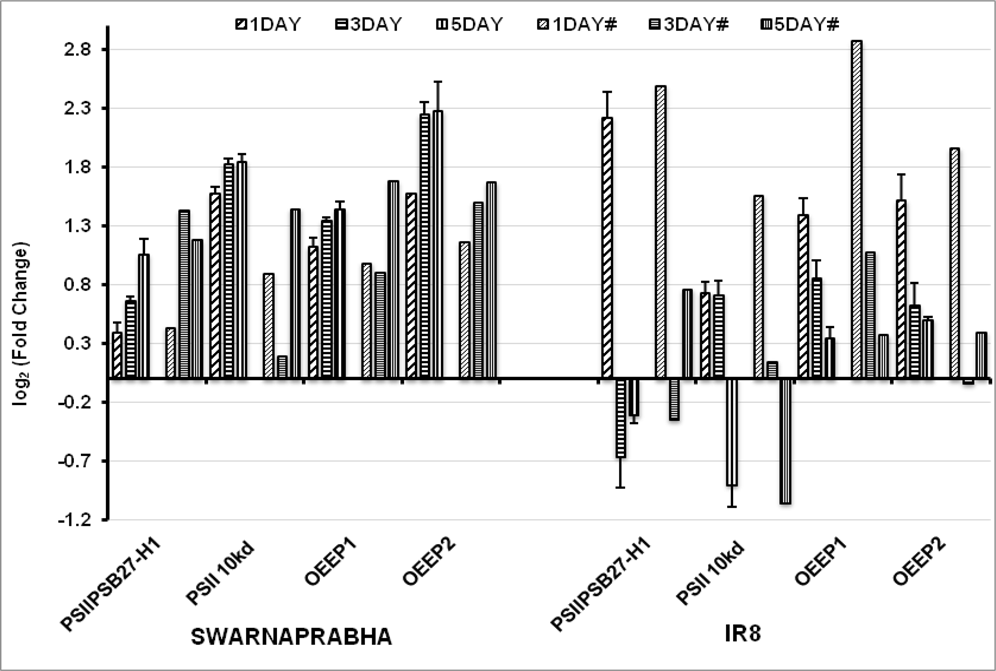

Validation of RNA-sequencing results through qRT-PCR of four differentially expressed genes involved in photosynthesis related pathway of low light treated sample of Swarnaprabha and IR8 with respect to control. Each gene was amplified using gene-specific primers designed using Primer Blast. Actin was taken as internal positive control. The primer sequences are provided in Supplementary Table S5. (# = RNA-seq). PSIIPSB27-H1, photosystem II repair protein PSB27-H1; PSII 10 kd polypeptide, photosystem II 10 kDa polypeptide; OEEP1, oxygen-evolving enhancer protein 1; OEE2, oxygen-evolving enhancer protein 2. Error bars are ±SD of the means of three qRT-PCR replicates.
