Figure 9

From: Comparative transcriptome profiling of low light tolerant and sensitive rice varieties induced by low light stress at active tillering stage

Figure 9

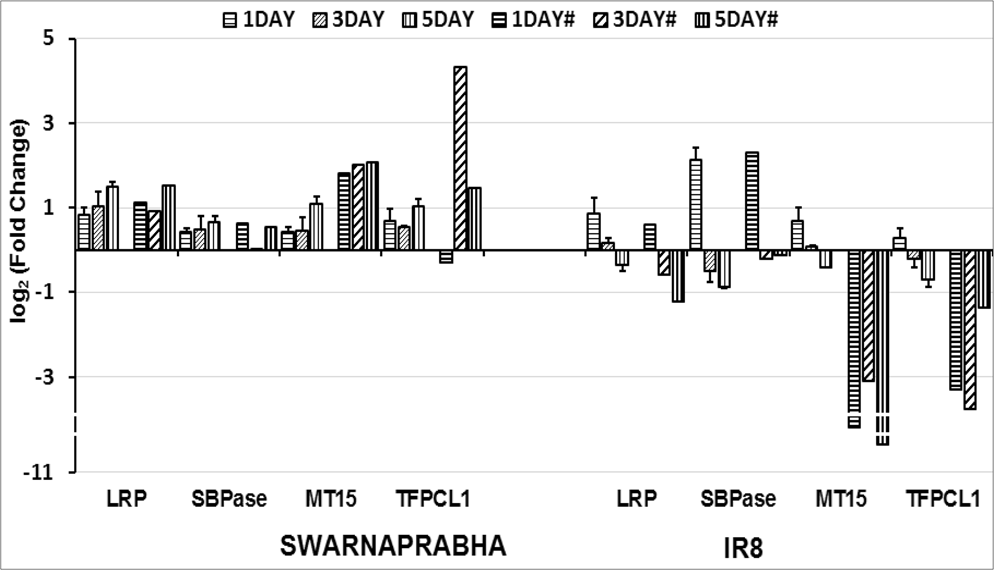

Validation of further four differentially expressed genes through qRT-PCR, selected from RNA sequencing results of Swarnaprabha and IR8 after low light treatment with respect to control. Each gene was amplified using gene-specific primers designed using Primer Blast and actin was taken as internal positive control. The primer sequences are provided in Supplementary Table S5. (# = RNA-seq). LRP, Light regulated protein, SBPase, sedoheptulose-1, 7-bisphosphatase, MT15, Plant metallothionein family 15 protein, TF PCL1, transcription factor PCL1. Error bars are ±SD of the means of three qRT-PCR replicates.
