Figure 2

From: Incomplete cell disruption of resistant microbes

Figure 2

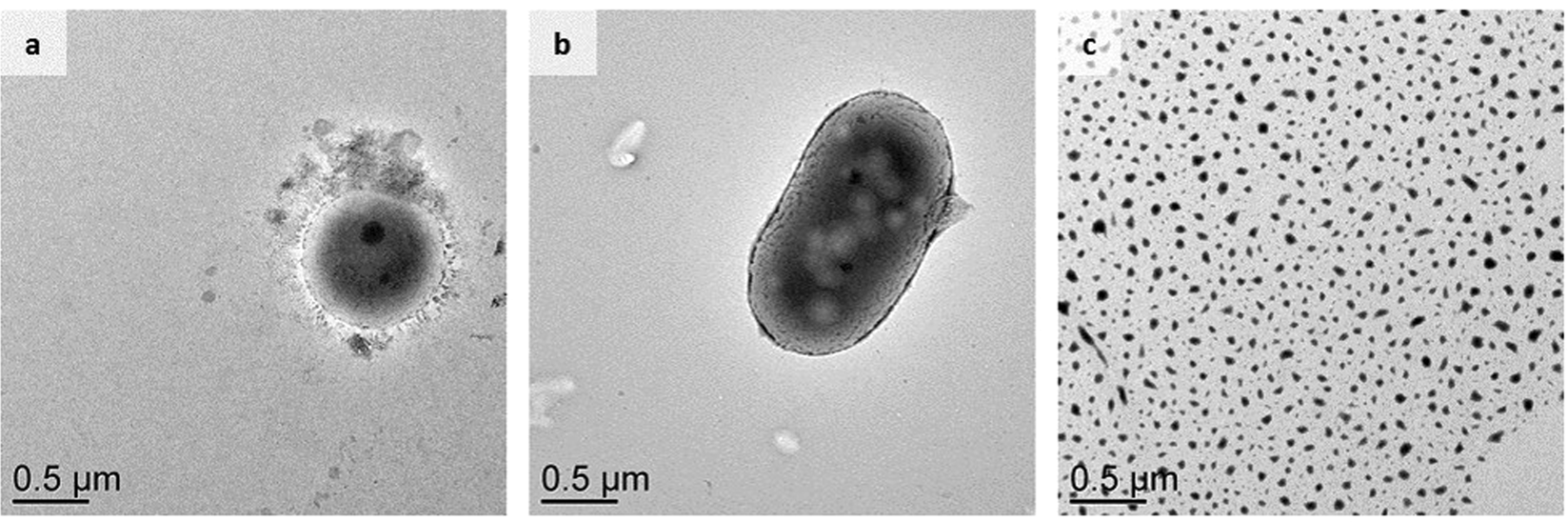

TEM images of representative cells of the Gram-positive bacteria (a) and the fungal enrichment culture (b) derived from KBS switchgrass soil after cell disruption with an ultra-sonication bath for 10 minutes. With identical treatment, no intact cells were found in the Gram-negative bacterial enrichment culture (c).
