Figure 2
From: Eco-friendly nanocomposites derived from geranium oil and zinc oxide in one step approach

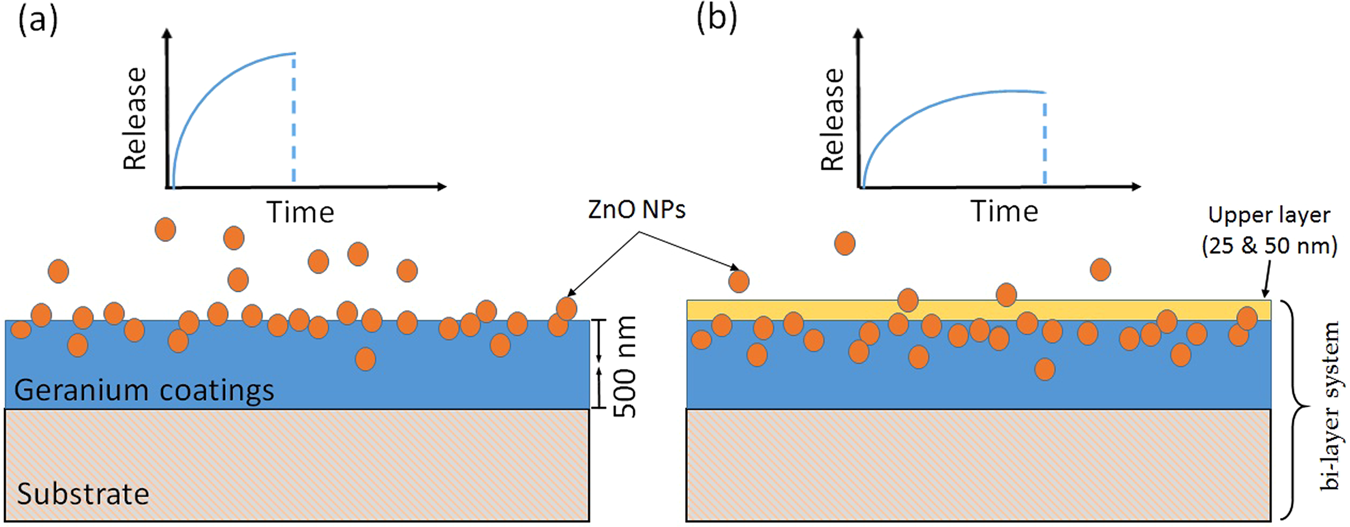

Schematic of the cross-section of (a) ZnO/geranium plasma polymer composite films (film thickness is ≈500 nm) with a fast release of ZnO nanoparticles. (b) ZnO/geranium films with a thin upper layer of geranium polymer (thickness is ≈25 and 50 nm) with reduced release rate of the ZnO from the composites.
