Figure 5
From: Eco-friendly nanocomposites derived from geranium oil and zinc oxide in one step approach

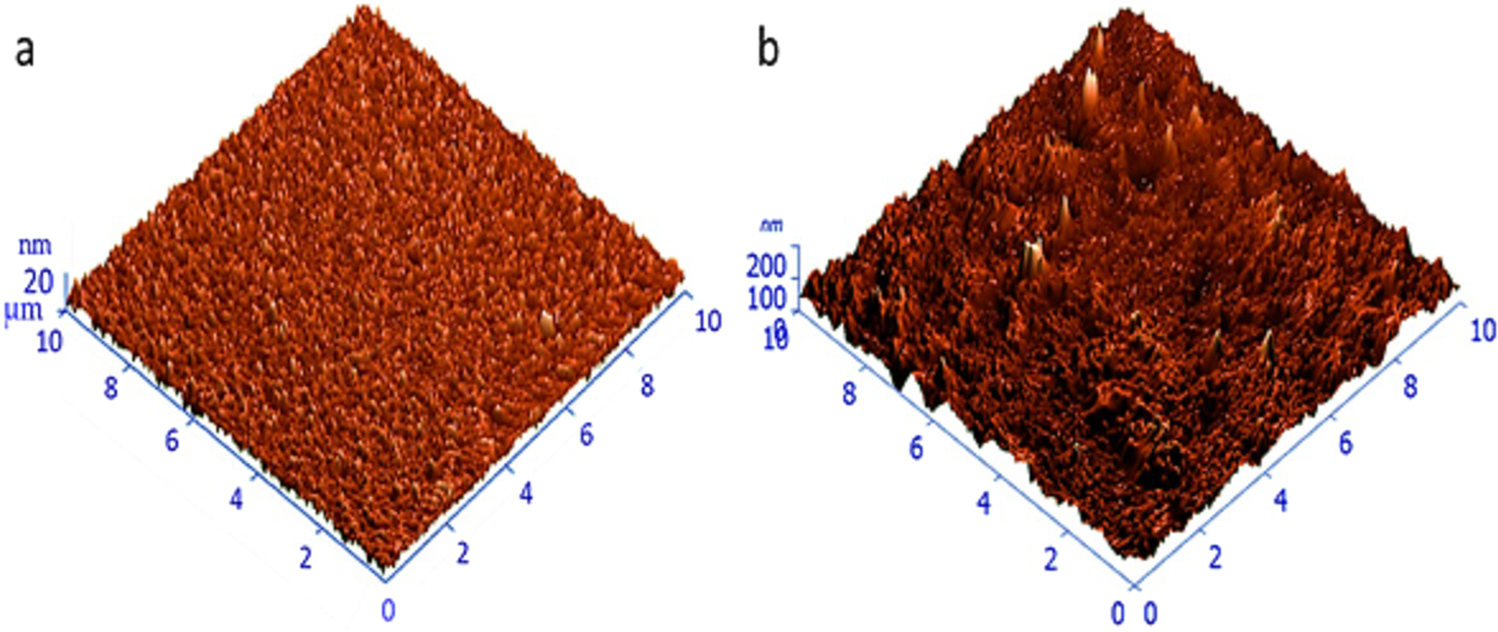

Three-dimensional AFM image of (a) pristine geranium polymer films, and (b) zinc/composites films. The scanning area of both images is 10 µm × 10 µm.
