Figure 4

From: Mechanical Twinning is a Correlated Dynamic Process

Figure 4

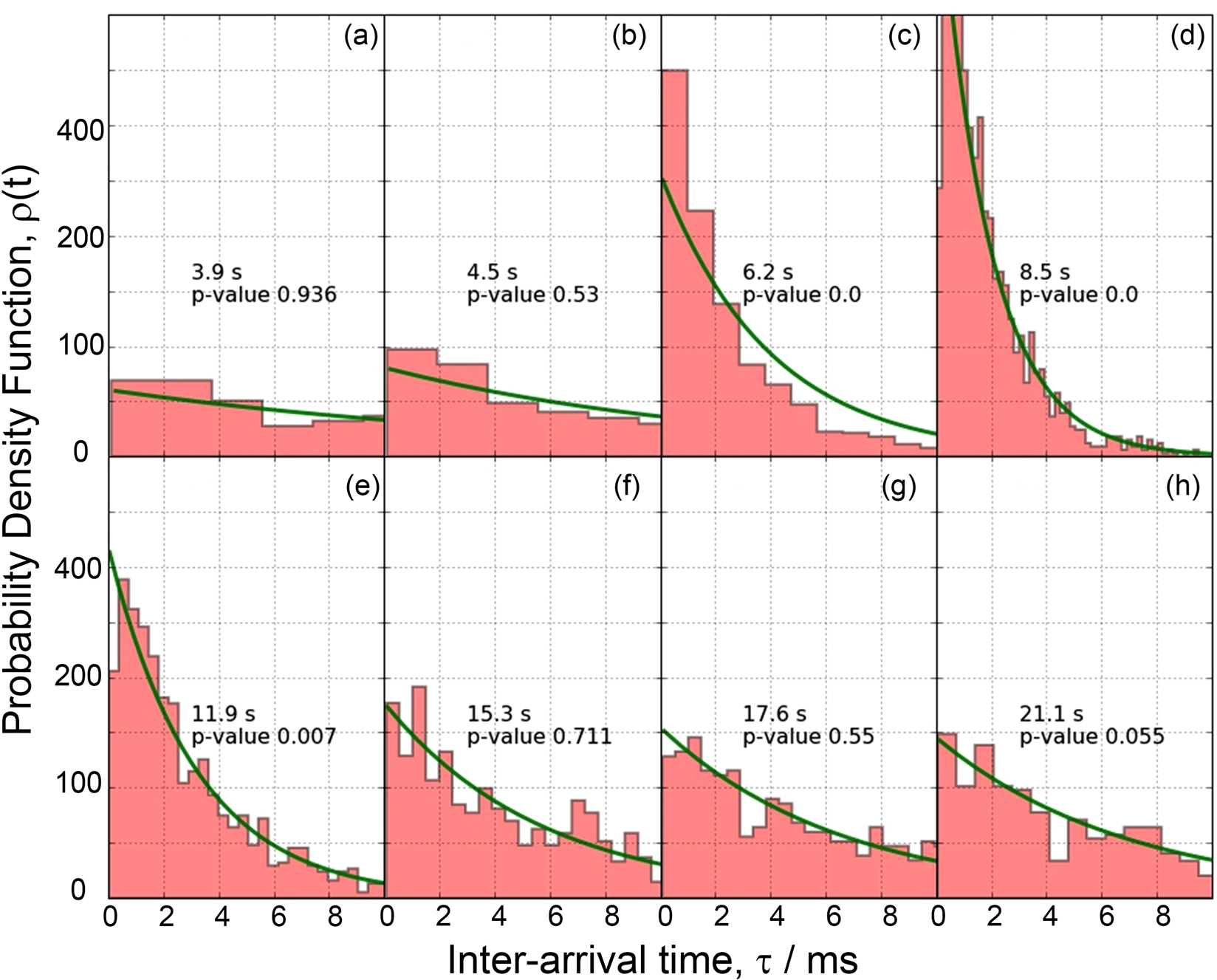

The evolution of the distribution function of time intervals between successive events in the AE time series corresponding to Fig. 3 at different time intervals \(j\in [1,K]\) shown in each sub-figure. The histograms show the experimental probability density function of the inter-arrival times. The solid lines represent the exponential Poisson distributions expected for given λ according to Eq. (2) (notice that it is not a fitting curve).
