Figure 3
From: A Physarum Centrality Measure of the Human Brain Network

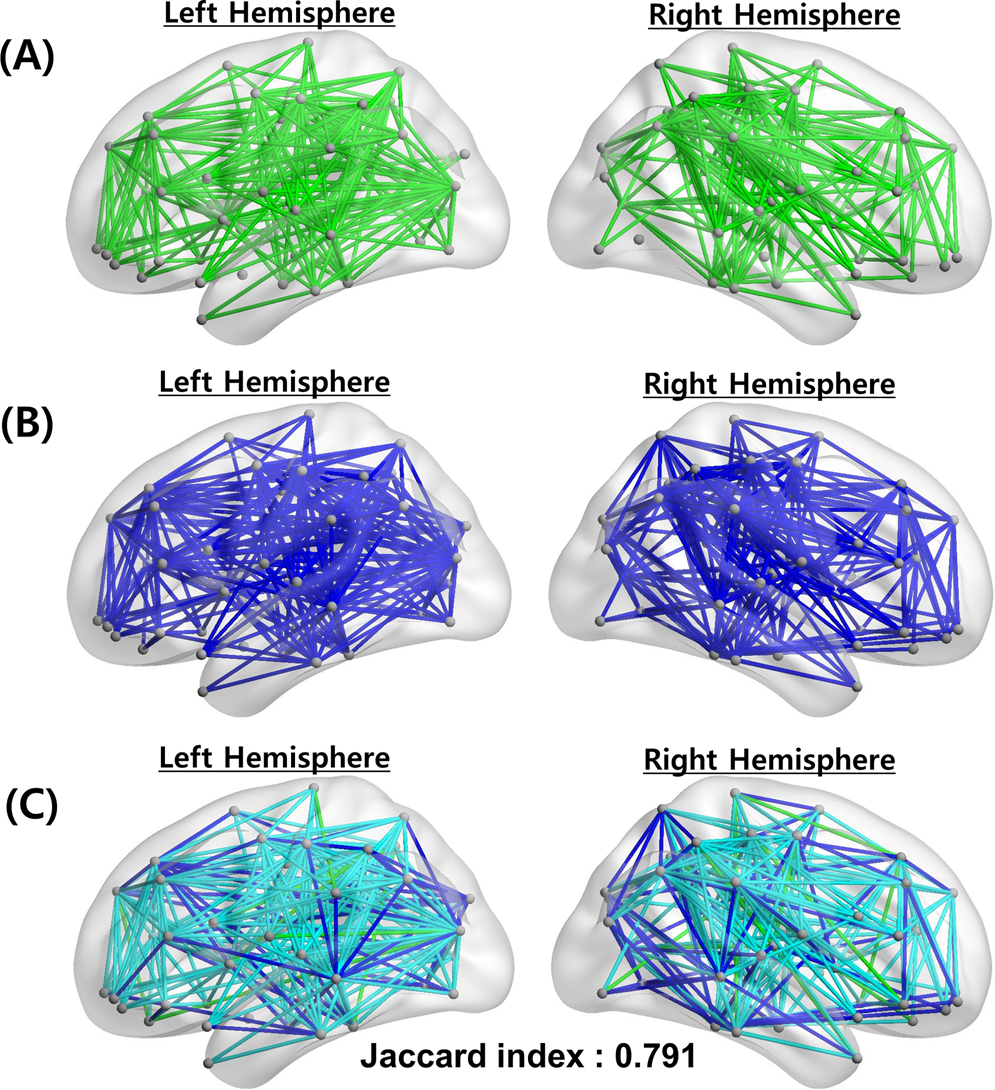

Distribution of network bridge edges based on CB,edge and CP,edge. (A) Network bridge edges based on CB,edge are shown in green. (B) Network bridge edges based on CP,edge are shown in blue lines. (C) Overlapped bridge edges between CB,edge and CP,edge are shown in light blue lines. The network bridge edges are identified when the network edges are greater than one standard deviation (SD) above the mean of each edge centrality measure map. Their Jaccard index is also shown with overlapped bridge edges.
