Figure 5 | Scientific Reports

Figure 5

From: Gestational exposure to an epidemiologically defined mixture of phthalates leads to gonadal dysfunction in mouse offspring of both sexes

Figure 5

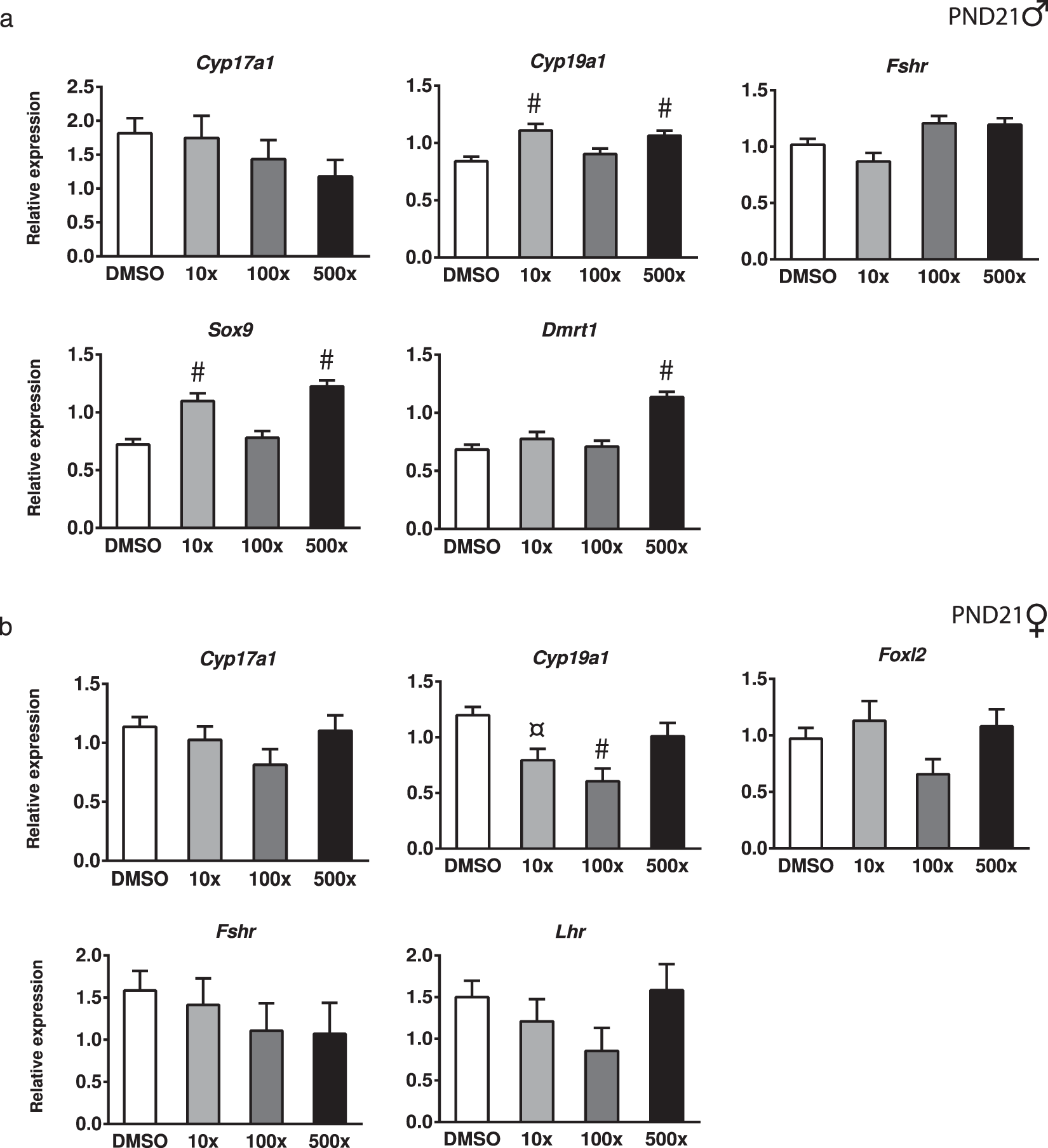

Effect of Mixture S on gonadal gene expression of PND21 male (a) and female (b) offspring exposed to 0x (DMSO), 10x, 100x and 500x SELMA mothers’ levels. Expression levels of indicated genes were evaluated by qRT-PCR and normalized to b-actin. Bars represent the estimated marginal means ± SE. Number of animals used: males 5–10; females 4–10. ¤p < 0.01; #p < 0.001.
