Figure 2
From: Bedrock-alluvial streams with knickpoint and plunge pool that migrate upstream with permanent form

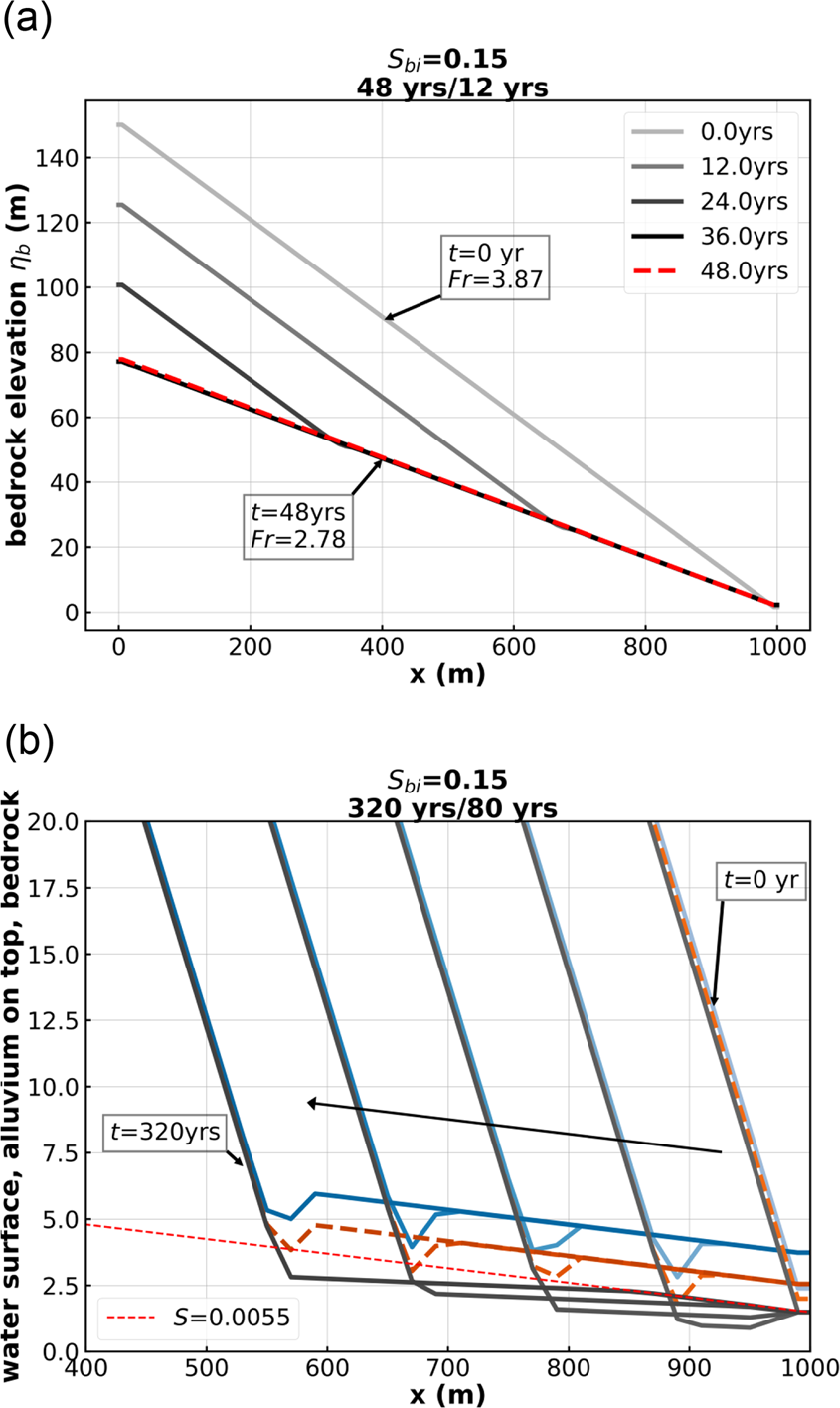

(a) Run 1 of the Table 1. (b) Run 2 of the Table 1. In (a), the lines with shading varying gradually from light to dark gray are bedrock profiles every 12 years, and the red dashed line is the bedrock elevation at the 48th year. In (b), the blue lines denote water surface elevation, the orange lines denote the top of the alluvium, and the gray lines denote the bottom of the bedrock.
