Figure 10
From: An overview of the oil-brine interfacial behavior and a new surface complexation model

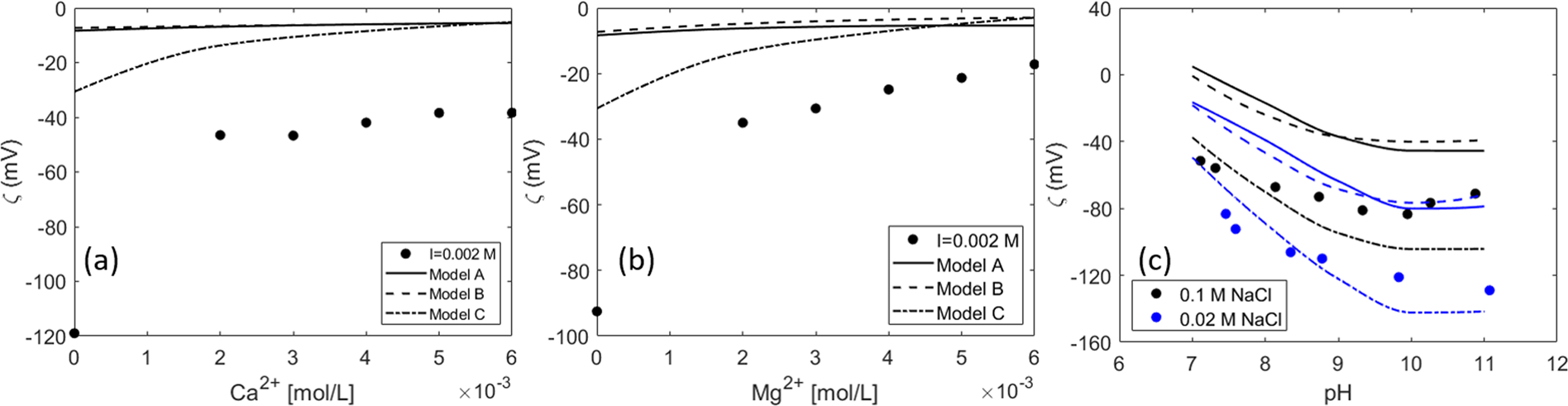

Experimental data from85: Measurements at a constant ionic strength (fixed with NaCl solution) at increasing: (a) CaCl2 concentration (b) MgCl2 concentration (c) 0.1 and 0.02 M varying pH.
