Figure 2 | Scientific Reports

Figure 2

From: Robust calculation of slopes in detrended fluctuation analysis and its application to envelopes of human alpha rhythms

Figure 2

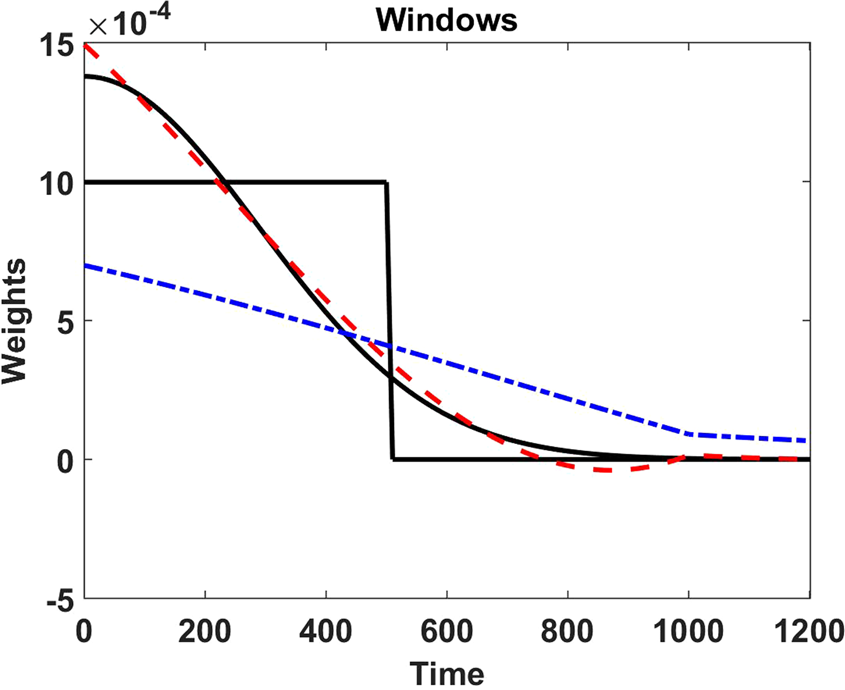

For a length scale of L = 1000, windows corresponding to order 0 and order 1 are calculated from Eq. 31 and Eq. 32 and are shown as blue dash-dotted and red dashed lines, respectively. For comparison we show the boxcar and the Gaussian window as black full lines with obvious distinction. Note that the windows are symmetric and we show only half of them.
