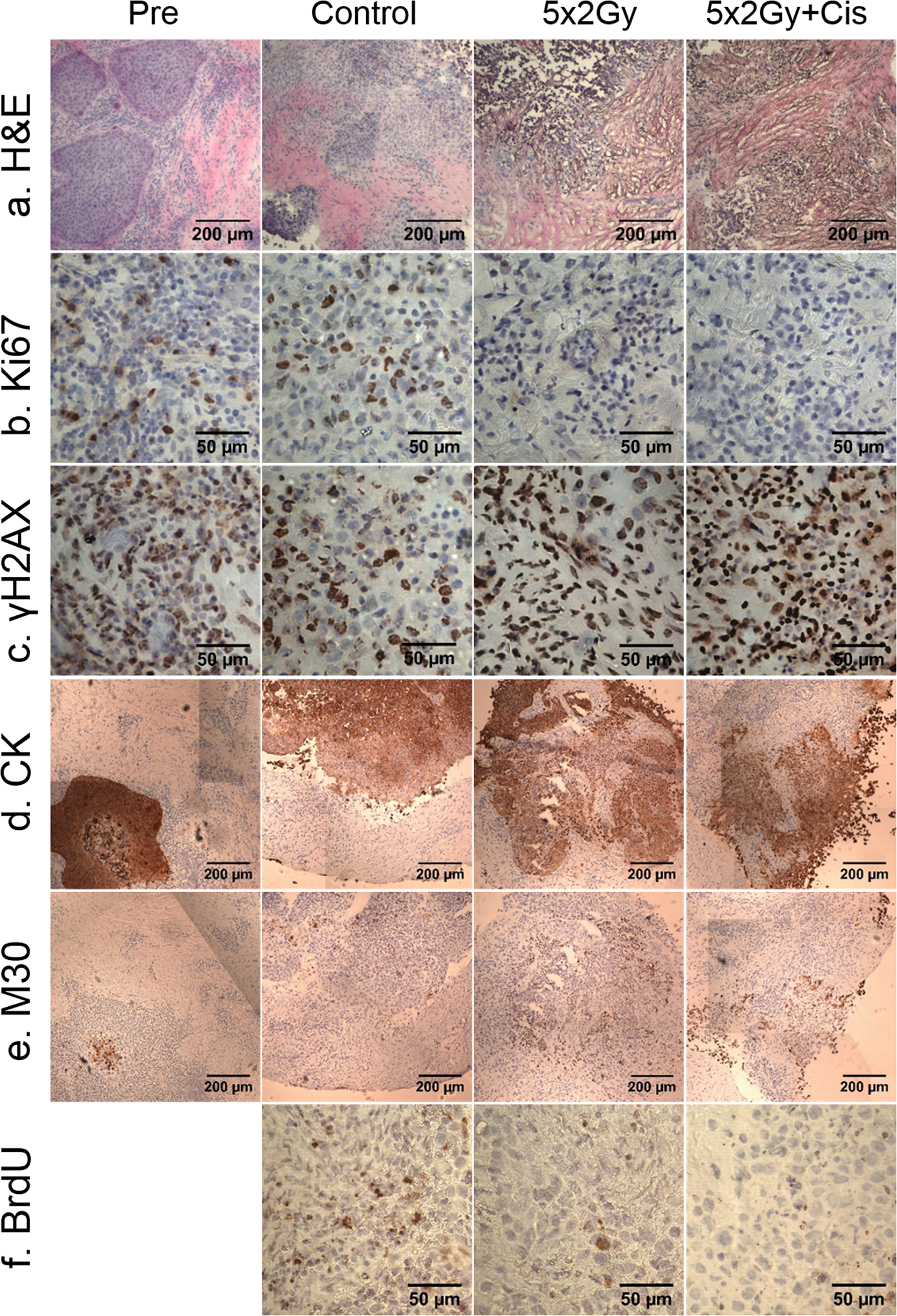

Laryngeal squamous cell carcinoma before and following on-chip culture with and without treatment. (a) H&E stained, x100 magnification. (b) Ki67 stained (proliferation), x400 magnification. (c) γH2AX (DNA damage response), x400 magnification. (d) Cytokeratin (CK: total tumour area), x100 magnification. (e) Caspase cleaved cytokeratin 18 (M30), x100 magnification. (f) BrdU stained (proliferation), x400 magnification. Representative images.
