Figure 5
From: Modeling of systematic errors in stereo-digital image correlation due to camera self-heating

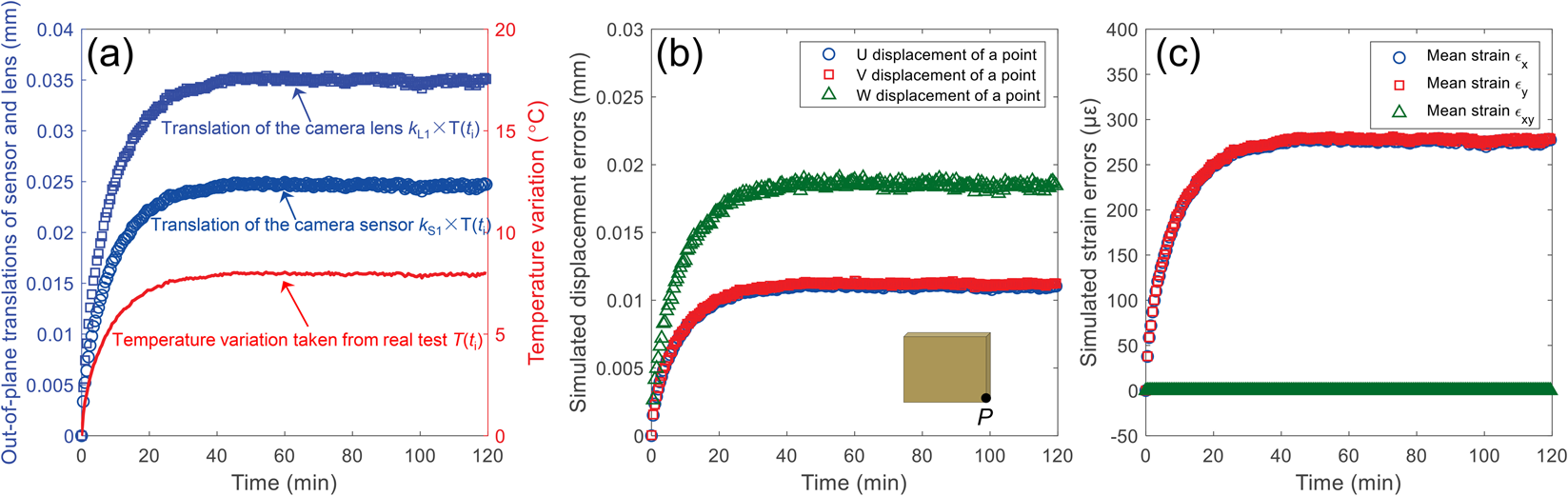

(a) A typical temperature variation curve in the imaging camera after switched on and the estimated out-of-plane translations of the camera sensor and imaging lens, (b) 3D displacement errors of a physical point P(205, 40, 730) on the specimen surface and (c) the measured mean in-plane strain errors as a function of time.
