Figure 3

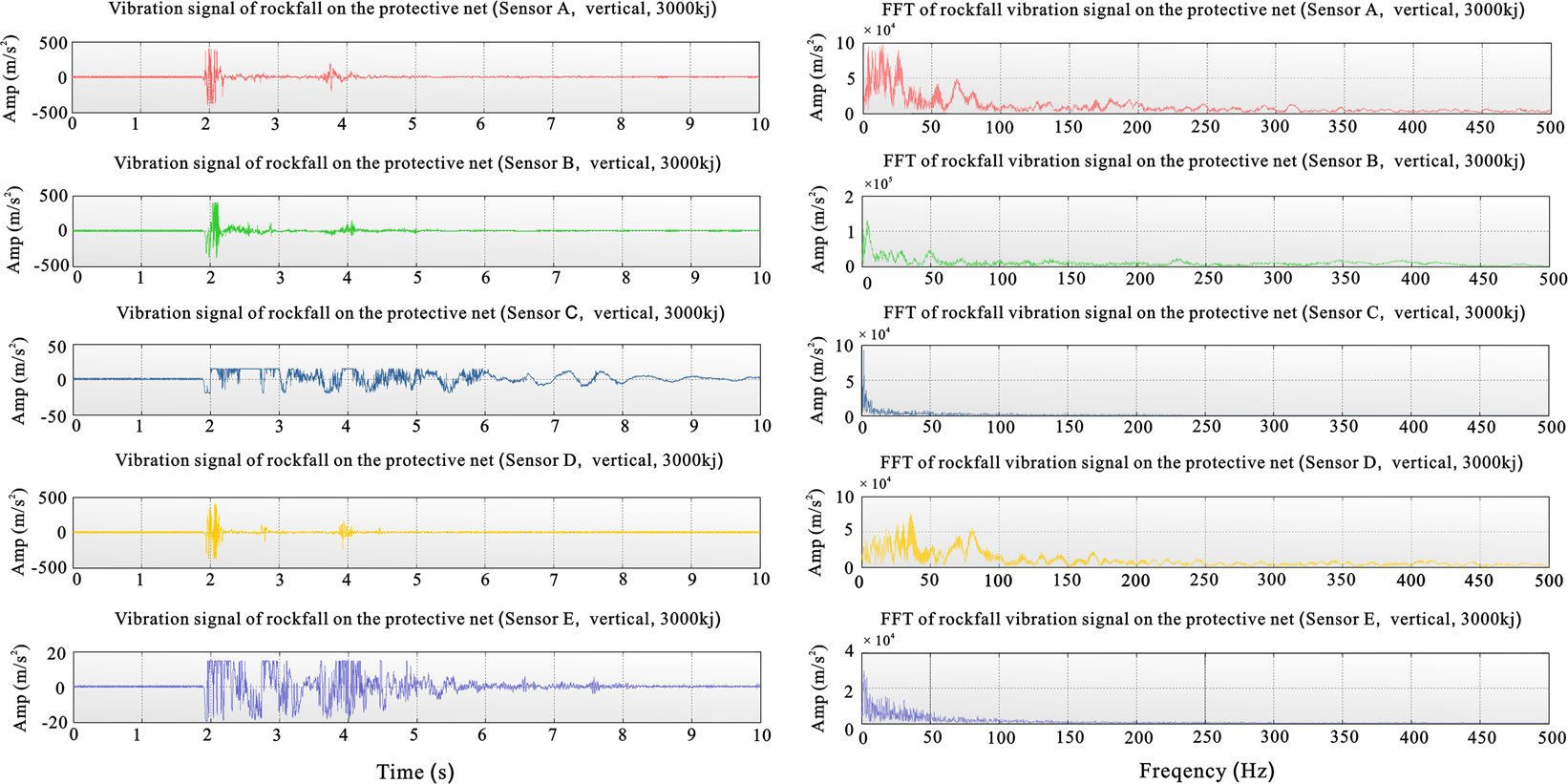

Vibration curves and frequency diagrams recorded by sensors at different positions for the 3000-kJ drop. (From top to bottom are data curves for sensors at points A, B, C, D and E, with 50 G range sensors at points A, B, and D and 2 G range sensors at points C and E).
