Figure 3

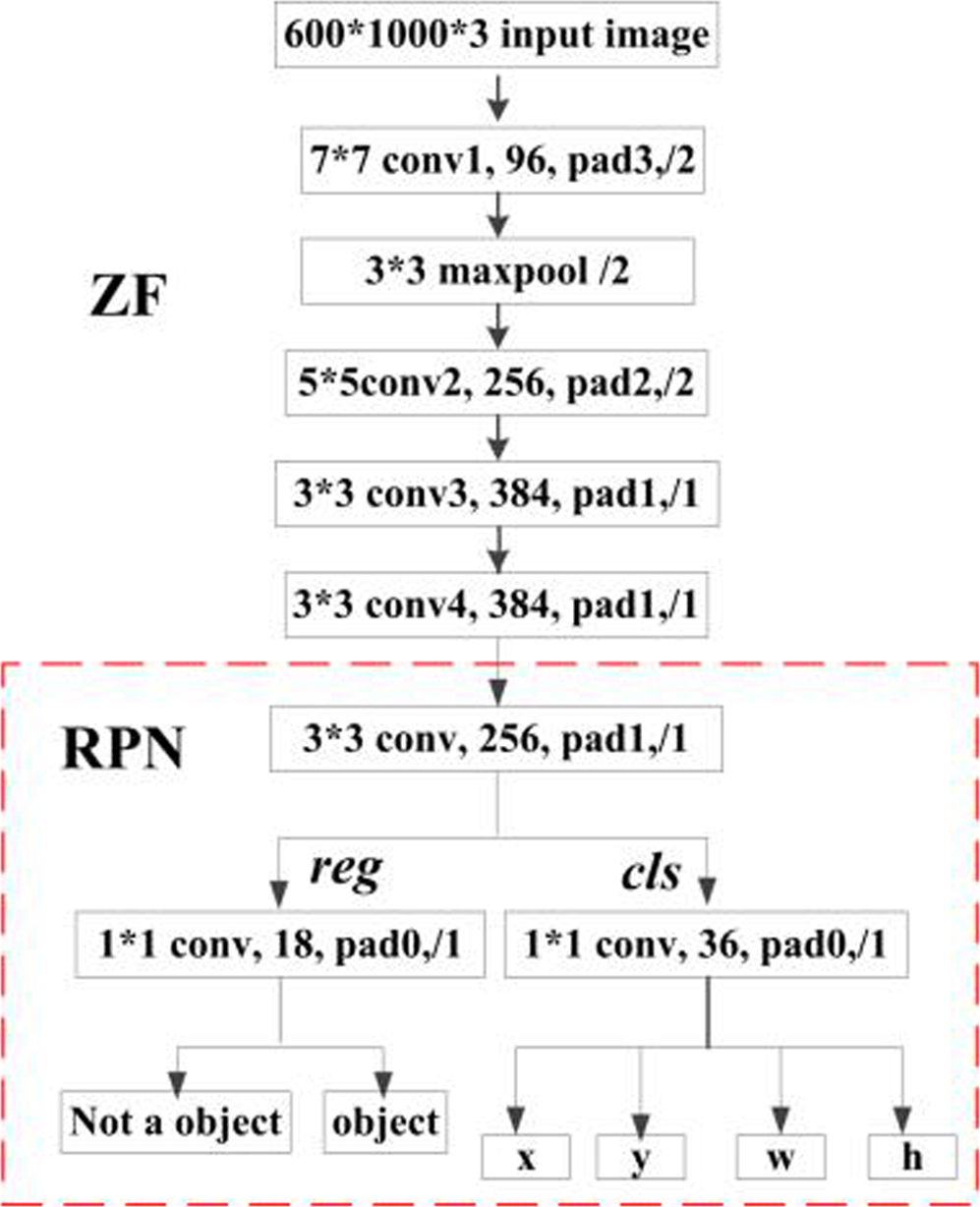

Architecture of ZF and RPN. The top part shows the adopted structure of ZF, which consists of four convolutional layers, conv1 to conv4, and a maxpool layer. The bottom part shows the adopted structure of RPN, which contains a convolutional layer and two output layers, reg and cls.
