Figure 3

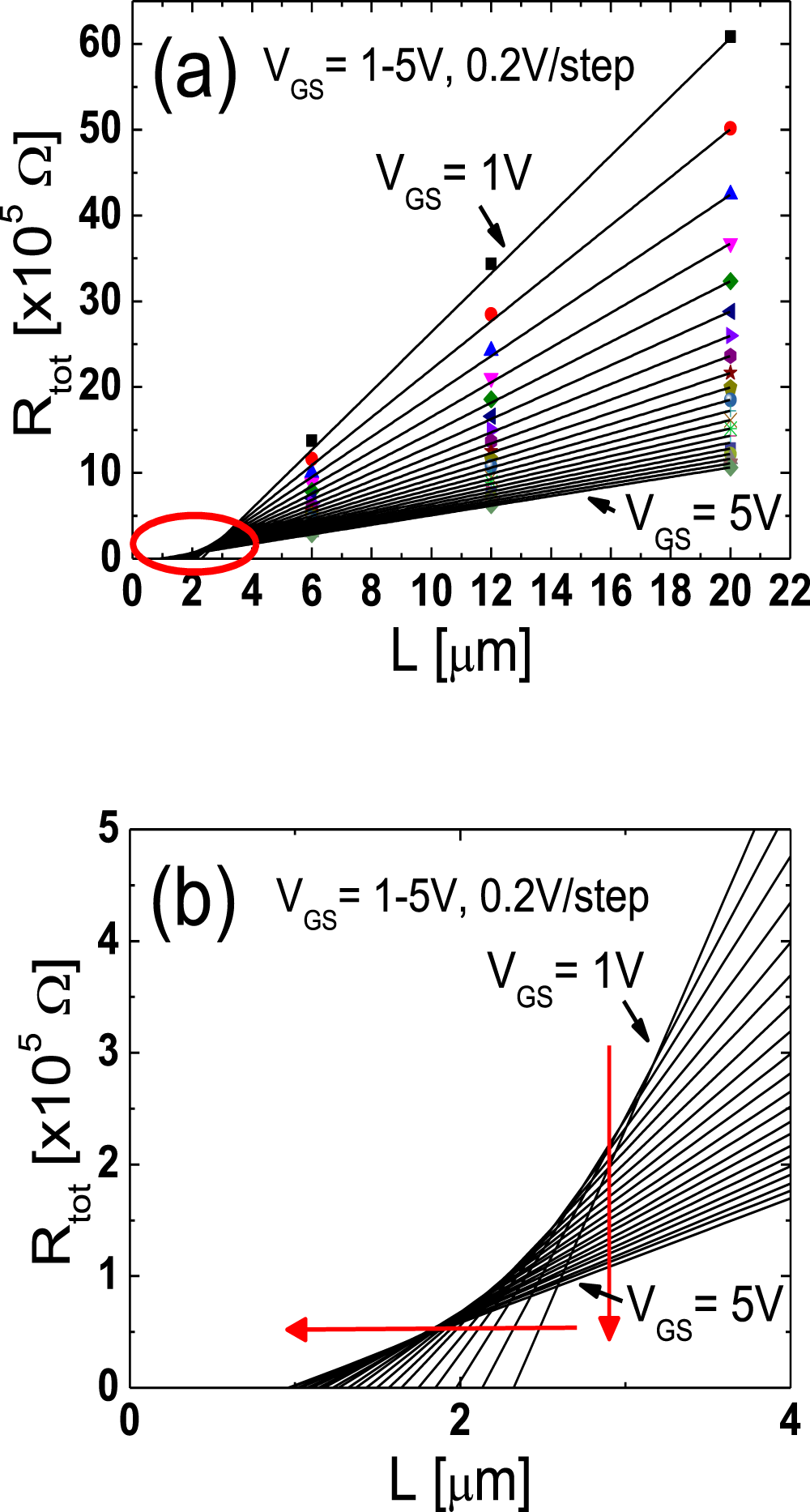

(a) Rtot-L plot measured from the TFTs with different Ls (L = 6, 12, 20 μm) at a given VDS of 0.1 V for various VGSs (=1 to 5 V with 0.2 V steps). (b) Enlarged image of the encircled area in (a).
Figure 3 | Scientific Reports
(a) Rtot-L plot measured from the TFTs with different Ls (L = 6, 12, 20 μm) at a given VDS of 0.1 V for various VGSs (=1 to 5 V with 0.2 V steps). (b) Enlarged image of the encircled area in (a).
