Figure 2

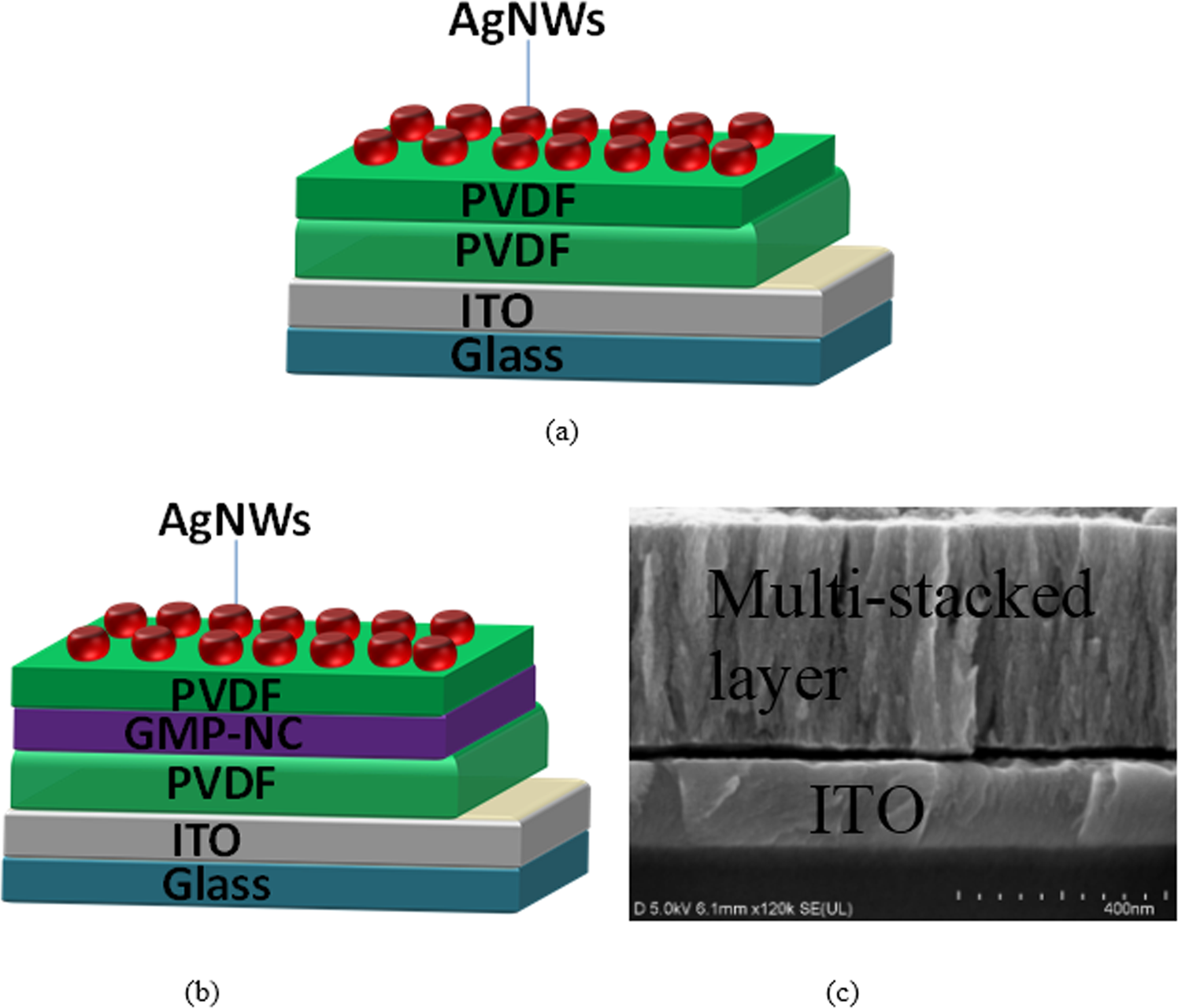

Schematic diagram of the sandwiched MIM device. (a) Reference device and (b) tristable switching device. (c) SEM cross-sectional structure characterization for the tristable switching device.
Figure 2 | Scientific Reports
Schematic diagram of the sandwiched MIM device. (a) Reference device and (b) tristable switching device. (c) SEM cross-sectional structure characterization for the tristable switching device.
