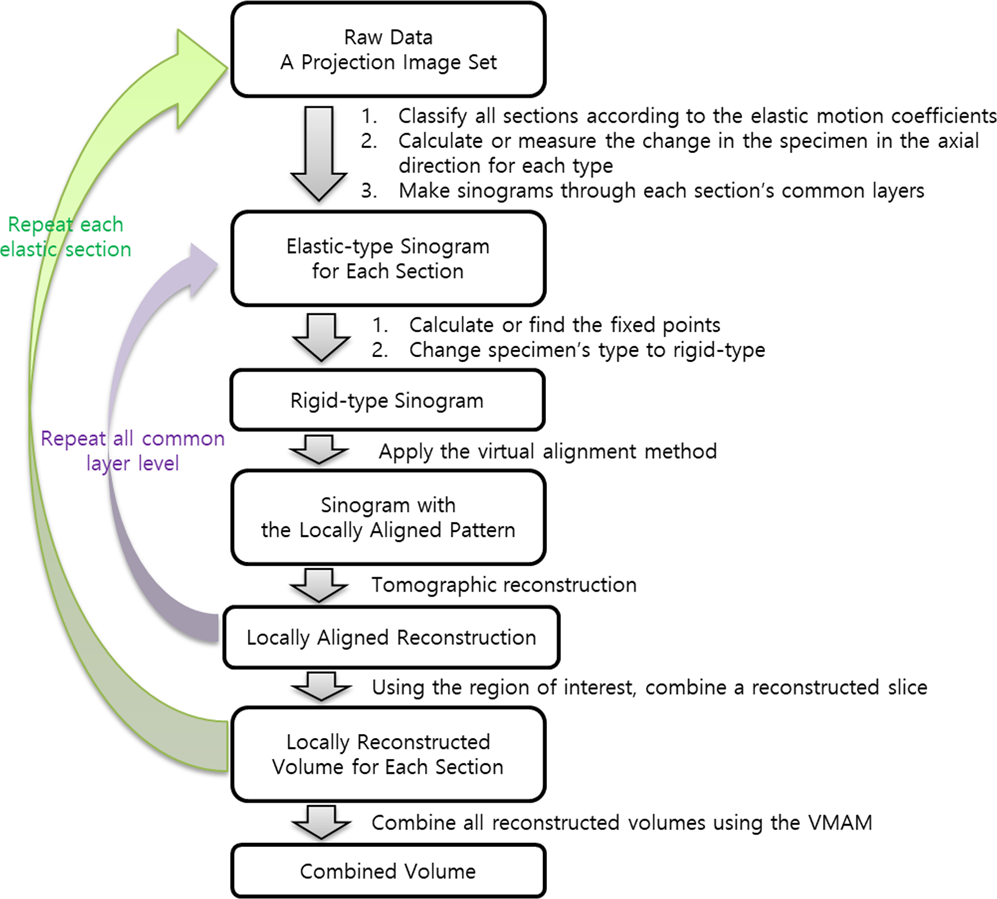

Figure 4

Flowchart of the process of obtaining a 3D reconstructed volume of the elastic sections using the virtual multi-alignment method. To obtain an ideally multi-aligned volume as a whole, it must be divided into sections according to the type of elastic motion. We then calculate the thickness of the common layer, taking into account the amount of change in each section in the axial direction to create an elastic-type sinogram. After changing the elastic-type sinogram to a rigid-type sinogram, we change the non-ISP to the LAP using the VAM. We use the LAP to achieve the ideally aligned reconstruction. Then, for each common layer, all reconstructed slices are combined to obtain a reconstructed volume for one section. We obtain the ideally multi-aligned volume as a whole by repeating the operation of a section for all sections and adding them together using the region of interest of each section.
