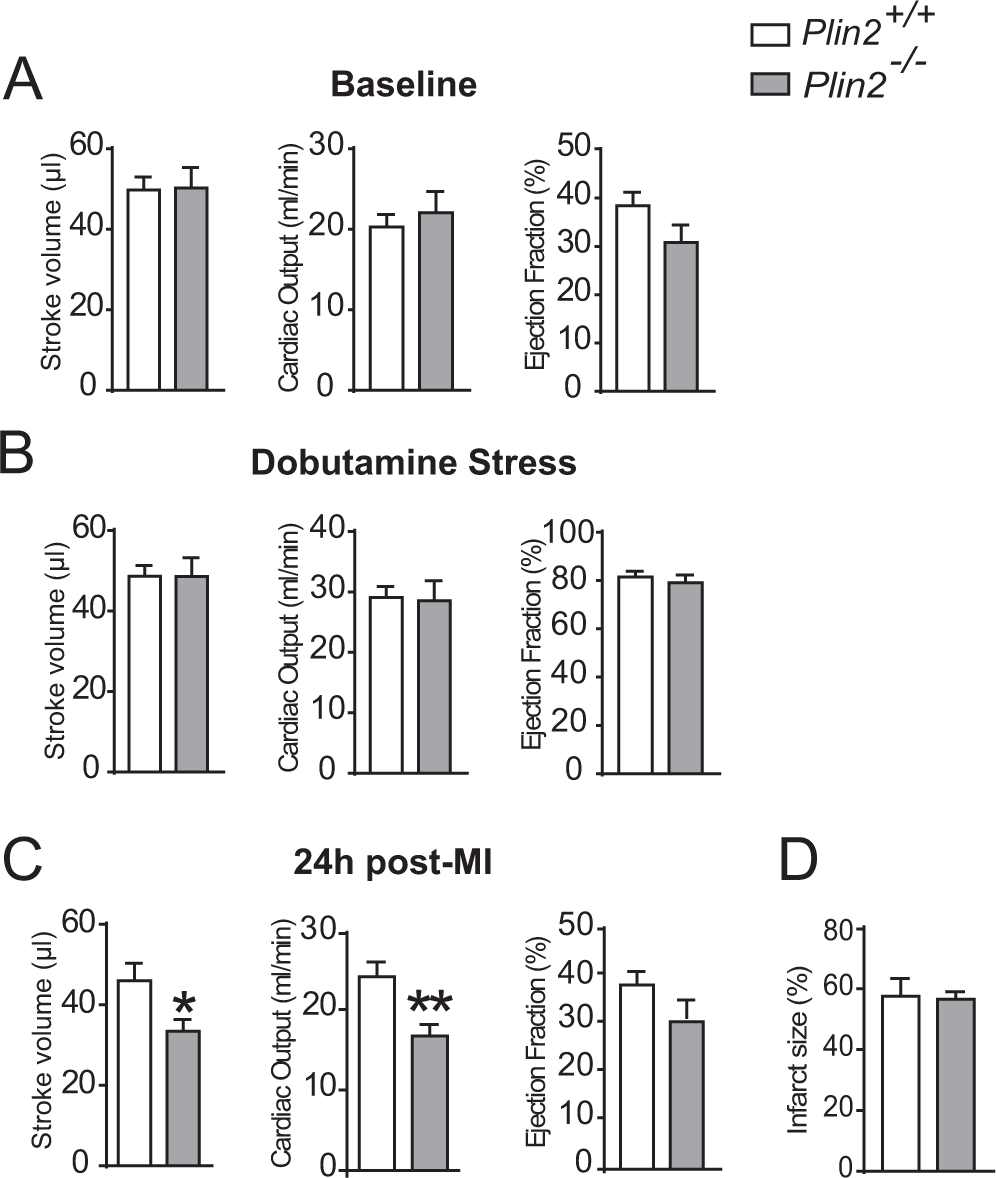

Figure 3
From: Plin2-deficiency reduces lipophagy and results in increased lipid accumulation in the heart
Reduced heart function following myocardial infarction in Plin2−/− mice. Heart function assessed with echocardiography, showing stroke volume, cardiac output and ejection fraction from Plin2+/+ and Plin2−/− mice in baseline condition (A), following dobutamine stress (B) and 24 h following myocardial infarction (C) (n = 8–9). Infarct size in Plin2+/+ and Plin2−/− mice 24 h following a myocardial infarction (D). Data presented as mean ± SEM, *p < 0.05 vs. Plin2+/+, **p < 0.01 vs. Plin2+/+
