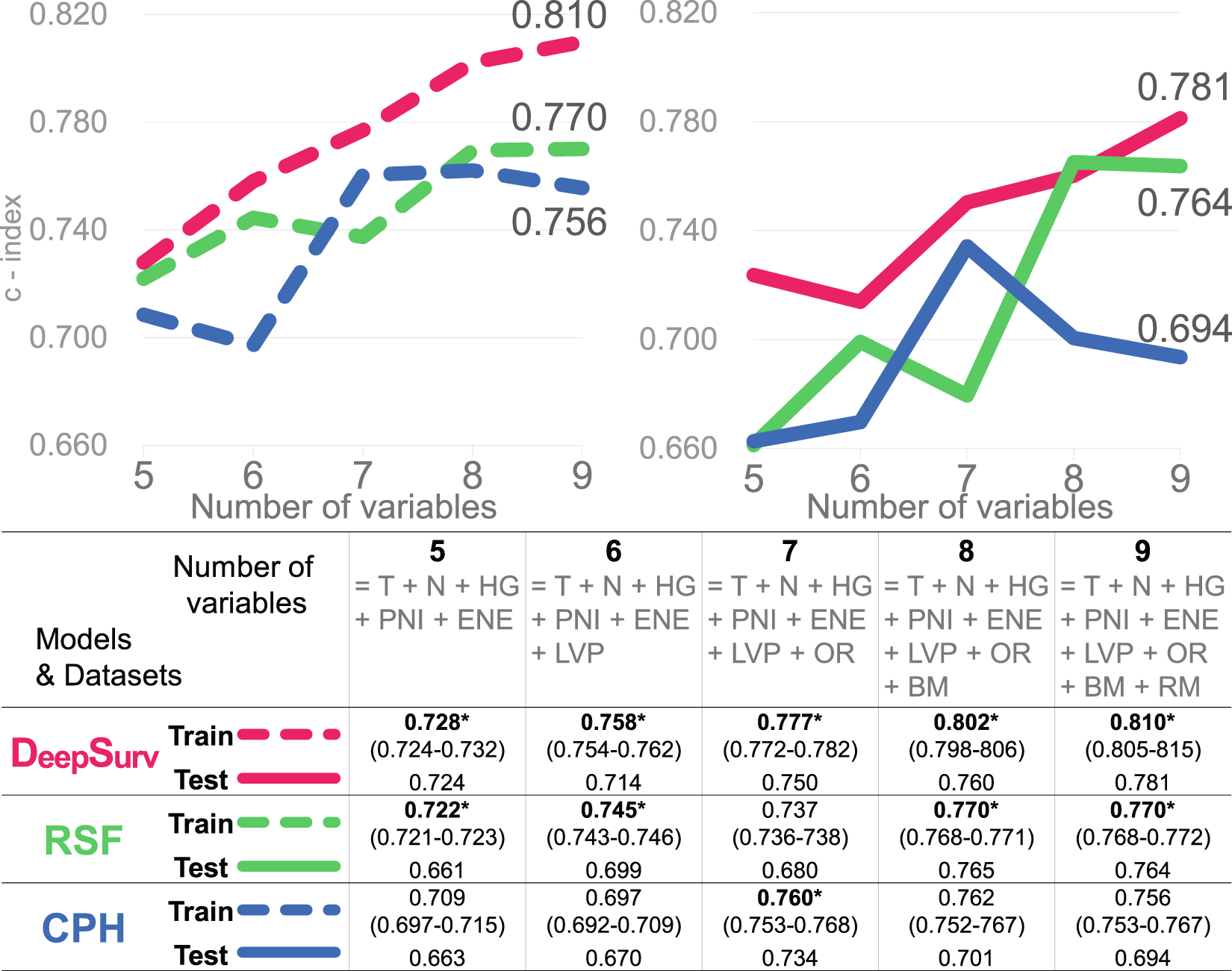

Figure 3
From: Deep learning-based survival prediction of oral cancer patients
Performance of DeepSurv, RSF, and CPH model in terms of c-index (95% confidence interval). DeepSurv performed best among the three models, showing a relatively more upward trend. Points 6, 8, and 9 indicate where statistically insignificant factors (LNP, BM and RM) were added. (T = T stage, N = N stage, HG = Histologic grade, PNI = Perineural invasion, ENE = Extranodal extension, LVP = Lymphovascular permeation, OR = Overall recurrence, BM = Bone marrow invasion, RM = Presence of tumor at resection margin, RSF = Random survival forest, CPH = Cox proportional hazard model, OOB = Out-of-bag).
