Figure 4 | Scientific Reports

Figure 4

From: Recognition of 3′-end L1, Alu, processed pseudogenes, and mRNA stem-loops in the human genome using sequence-based and structure-based machine-learning models

Figure 4

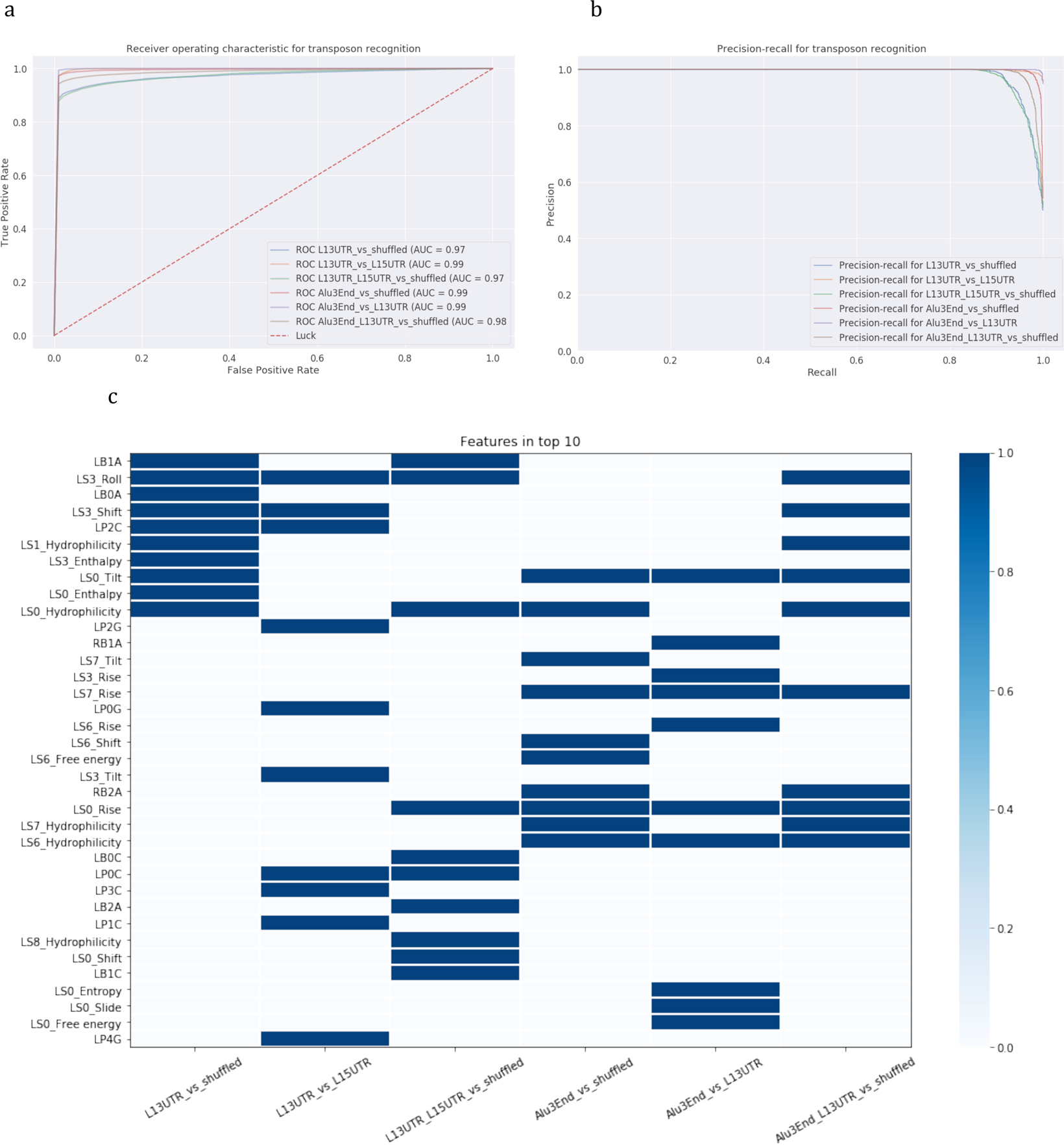

Recognition of 3′-end stem-loops of Alu and L1 elements with structure-based models. (1) L1 3′UTR vs shuffled, (2) L1 3′UTR vs L1 5′UTR, (3) L1 (L1 3′UTR + L1 5′UTR) vs shuffled, (4) Alu 3′-end vs shuffled, (5) Alu 3′-end vs L1 3′UTR, (6) Alu 3′-end and L1 3′UTR vs shuffled. (a,b) Models’ performance: (a) ROC-curves and (b) precision-recall curves. (c) Feature importance analysis. Top-10 important parameters are coloured.
