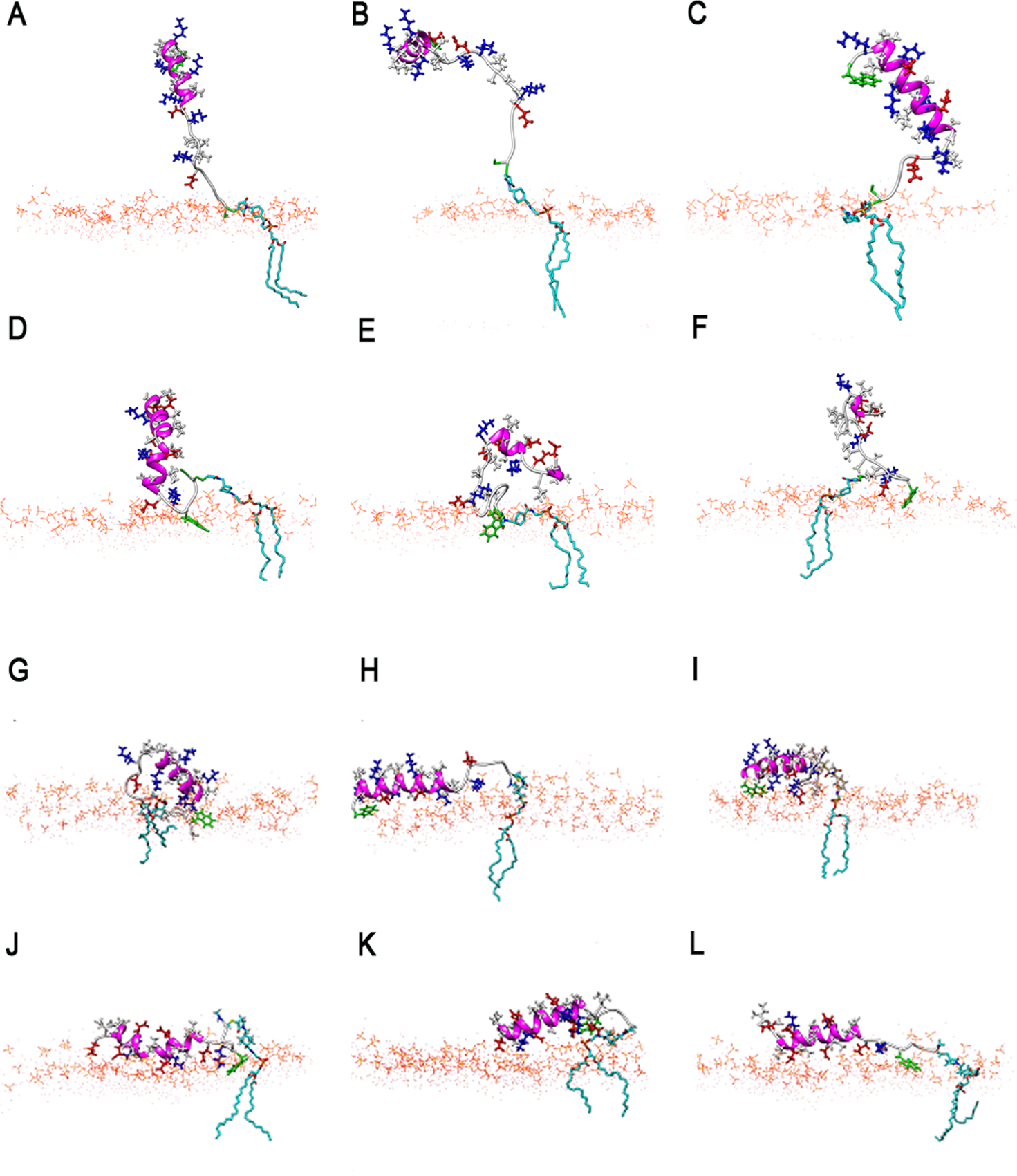

Snapshots from simulations of the lipid-anchored peptides: (A–C) LPK anchored to the PC bilayer, (D–F) LPE anchored to the PC bilayer, (G–I) LPK anchored to the PG bilayer, (J–L) LPE anchored to the PG bilayer. The peptide backbone is shown in magenta (helical parts) and light grey (unstructured), side chains are drawn in red = negative, blue = positive, white = hydrophobic residues, TRP and CYS side chains are highlighted in green; lipid head groups are shown in orange, lipid tails are only shown for the peptide anchor.
