Figure 5

From: Conserved, breed-dependent, and subline-dependent innate immune responses of Fayoumi and Leghorn chicken embryos to Newcastle disease virus infection

Figure 5

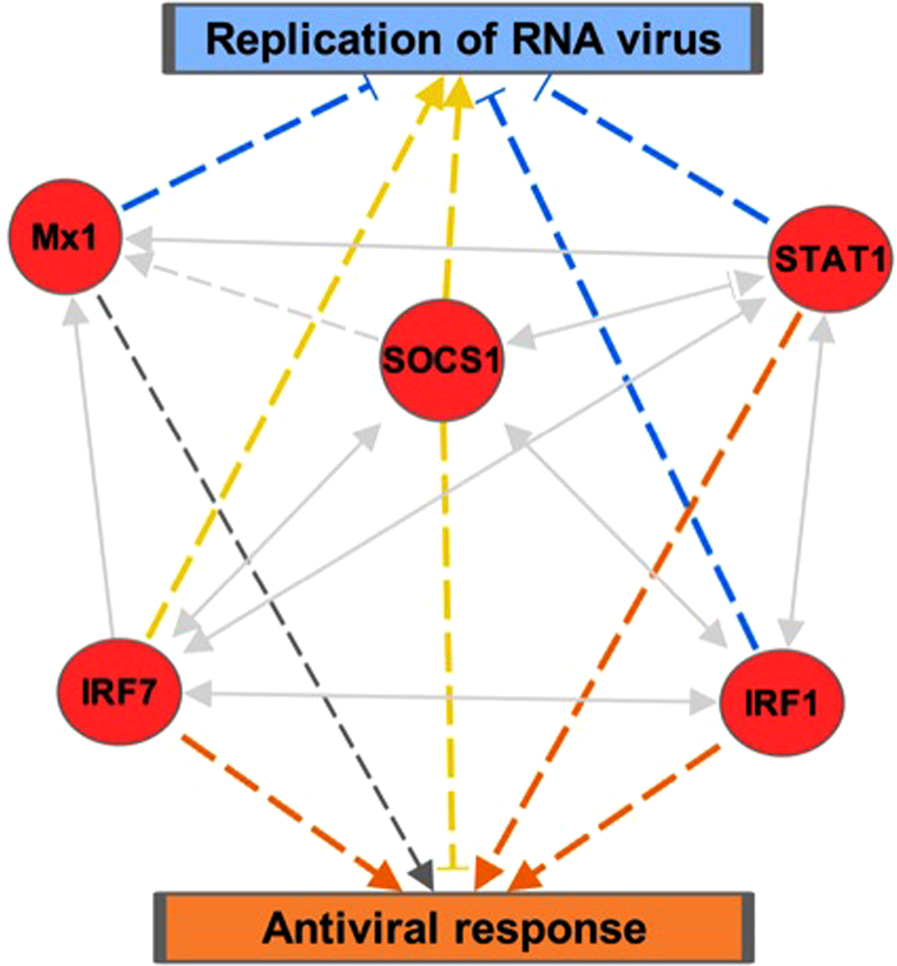

The Conserved Response of chickens to NDV infection. The gene network, including the five core genes upregulated in response to NDV, and the top Disease & Function, the antiviral response, is shown. The data were analyzed through the use of IPA (QIAGEN Inc., https://www.qiagenbioinformatics.com/products/ingenuity-pathway-analysis). The red color demonstrates the average upregulation of the genes, the light grey are the gene-gene interactions (solid = direct, dashed = indirect) the orange color shows activation of that pathway, the dark grey shows the effect is not predicted, and the yellow shows findings not consistent with downstream molecules.
