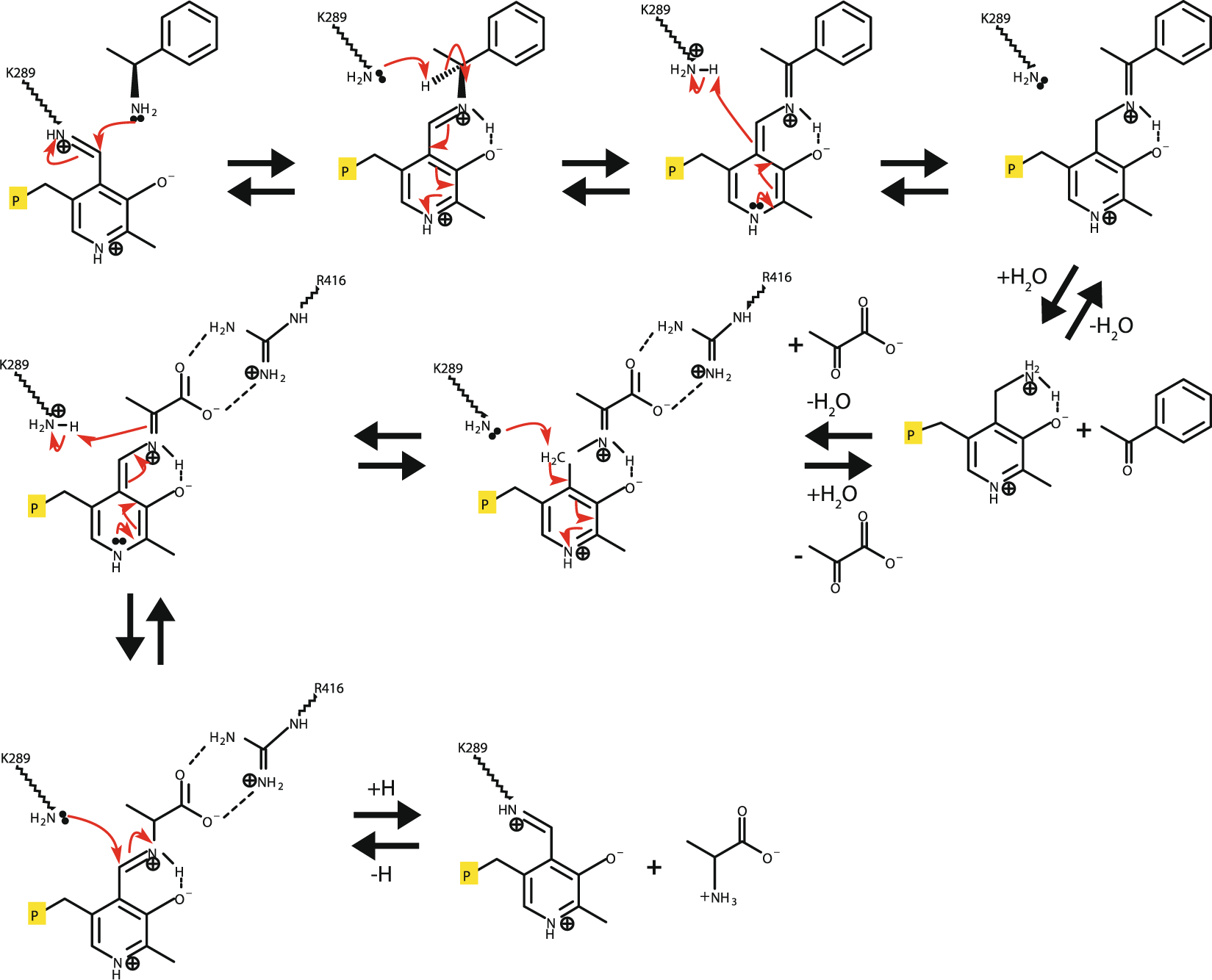

Figure 8

Proposed catalysis mechanism for Tr-ωTA. (S)-α-MBA and pyruvate are used as model substrates for amino group donation and acceptance, respectively. The red arrows denote the attack directions of a pair of electrons. The yellow-boxed P letter symbolizes the phosphate group of the PLP/PMP cofactor.
