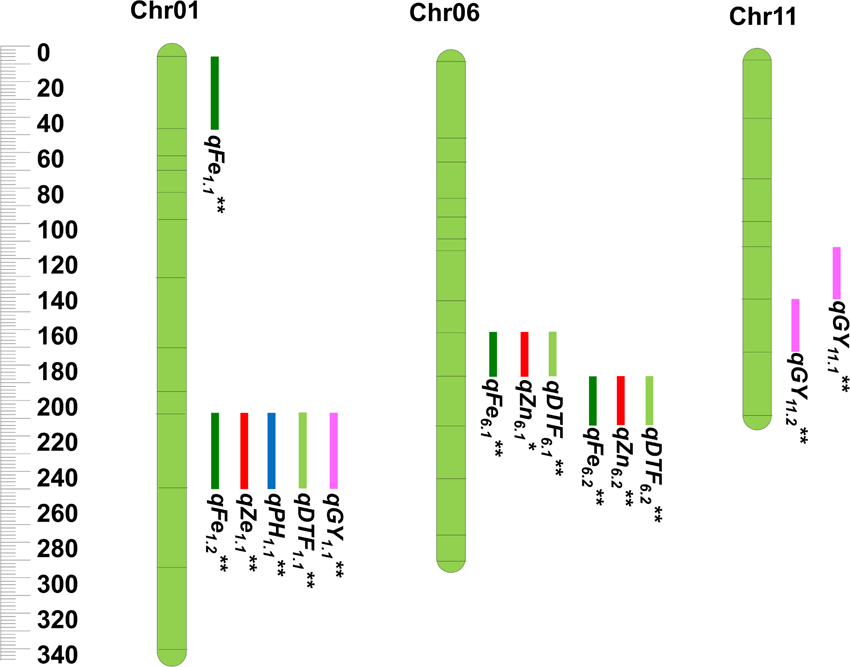

Figure 2
From: Identification of genomic region(s) responsible for high iron and zinc content in rice
SSR based genetic map and distribution of QTLs associated with grain Fe and grain Zn (RP-Bio226 × Sampada). The scale on the left indicates genetic distance (centiMorgan; cM as unit). The black lines in the linkage groups represent the genetic position of the markers. A total of three linkage groups, namely Chr 01, Chr 06 and Chr 11 possess 14 QTLs for grain Fe, Zn and yield and yield-related traits. Note: *represent QTL identified in one season and ** represents stable QTL (identified in both seasons, 2015 DS & 2015 WS).
