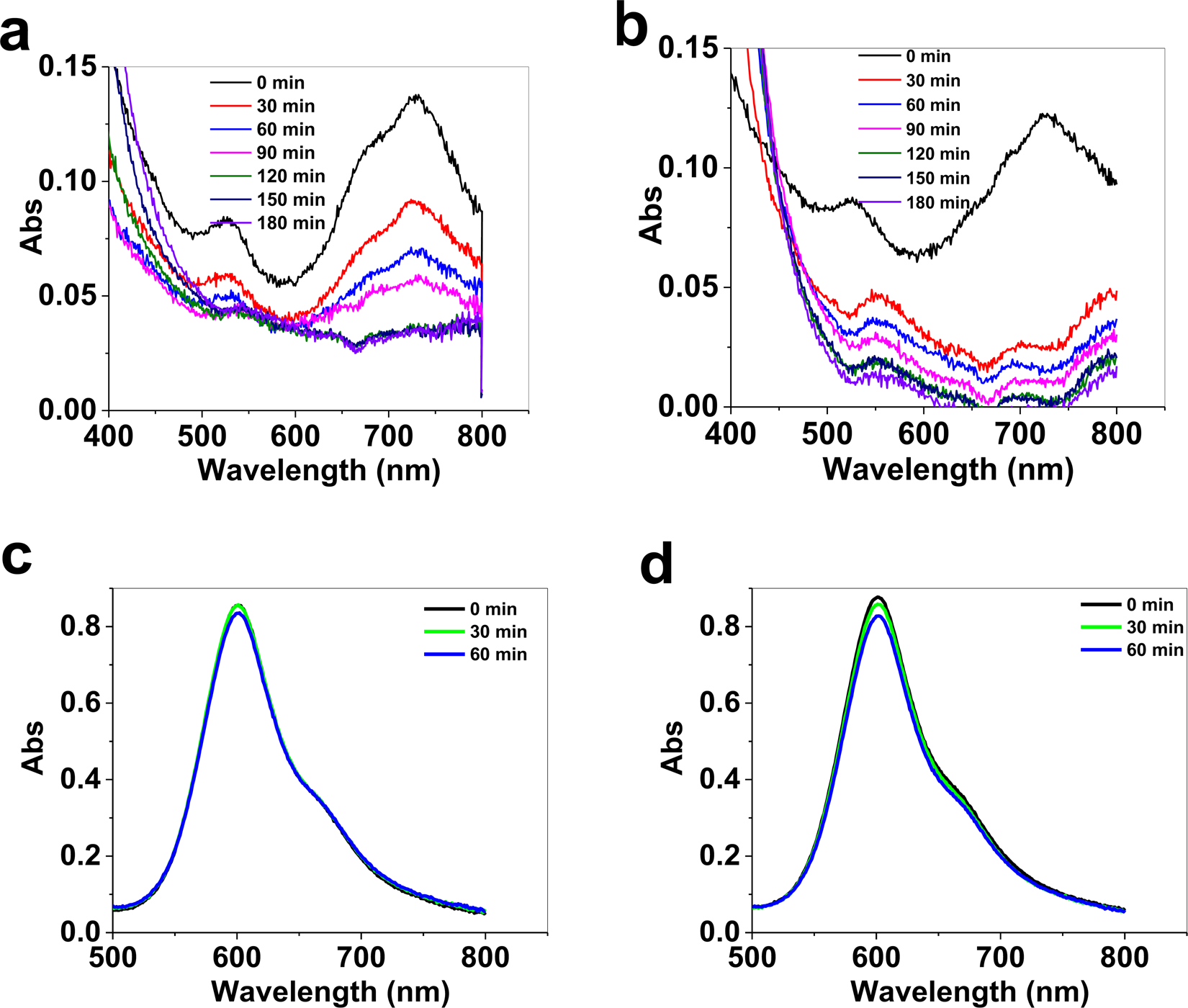

Figure 3
From: A new decomposition mechanism for metal complexes under water-oxidation conditions
Spectroelectrochemistry under water-oxidation reaction in the presence of Mn phet in the presence of a bare FTO (a) and the presence of the decomposed product of the same complex on FTO (b). Spectroelectrochemistry under water-oxidation reaction in the presence of Ni phet in the presence of a bare FTO (c) and the presence of the decomposed product of the same complex on FTO (d). Amperometric conditions: 1.60 V. For the conditions see Table S5.
