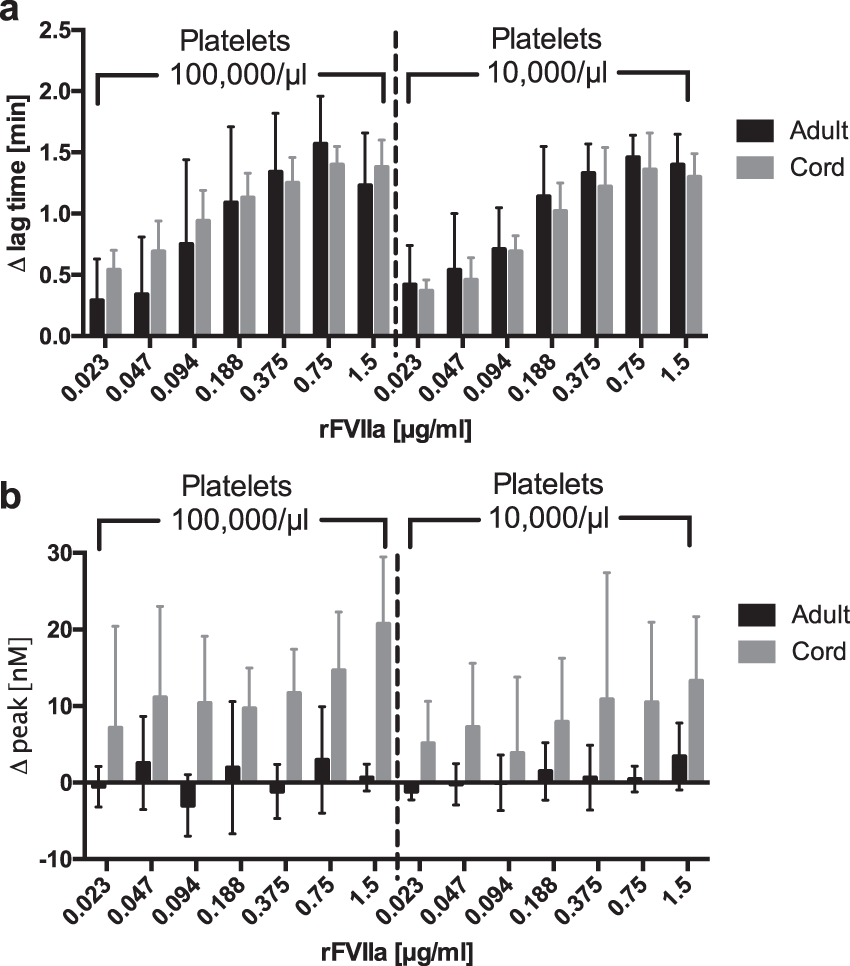

Figure 3

Impact of varying rFVIIa concentrations on reduction of lag time and peak thrombin generation. Lag time shortening (a) and changes in peak (b) were observed with different concentrations of rFVIIa at 100,000 platelets/µl and 10,000 platelets/µl (n = 5).
