Figure 7

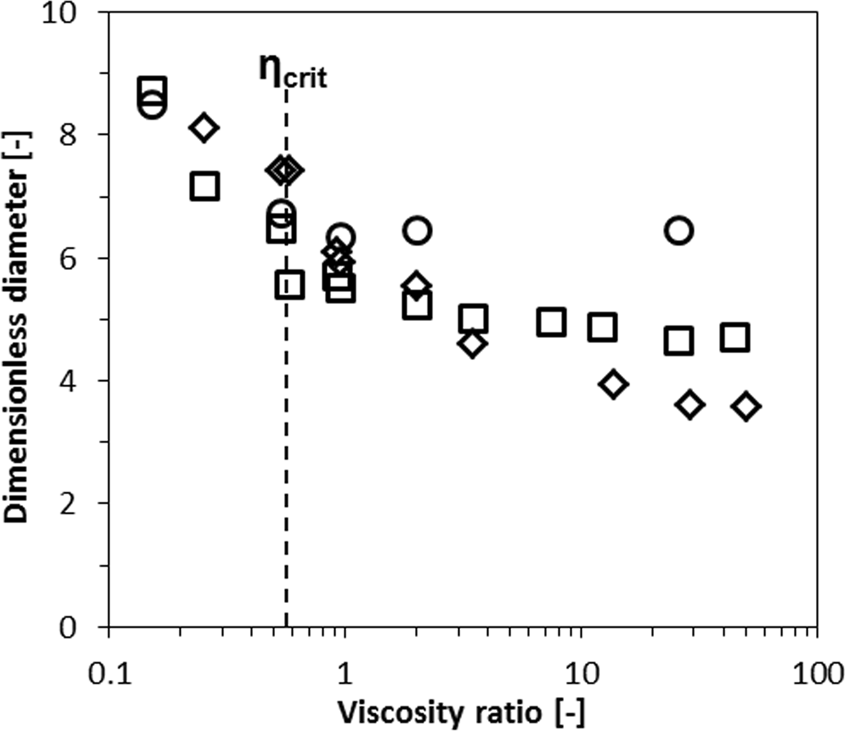

Effect of the viscosity ratio on the droplet diameter for partitioned EDGE devices with a micro-plateau width of 5 μm (◊), 20 μm (□) and 40 μm (○).
Figure 7 | Scientific Reports
Effect of the viscosity ratio on the droplet diameter for partitioned EDGE devices with a micro-plateau width of 5 μm (◊), 20 μm (□) and 40 μm (○).
