Figure 12

From: First use of anatomical networks to study modularity and integration of heads, forelimbs and hindlimbs in abnormal anencephalic and cyclopic vs normal human development

Figure 12The alternative text for this image may have been generated using AI.

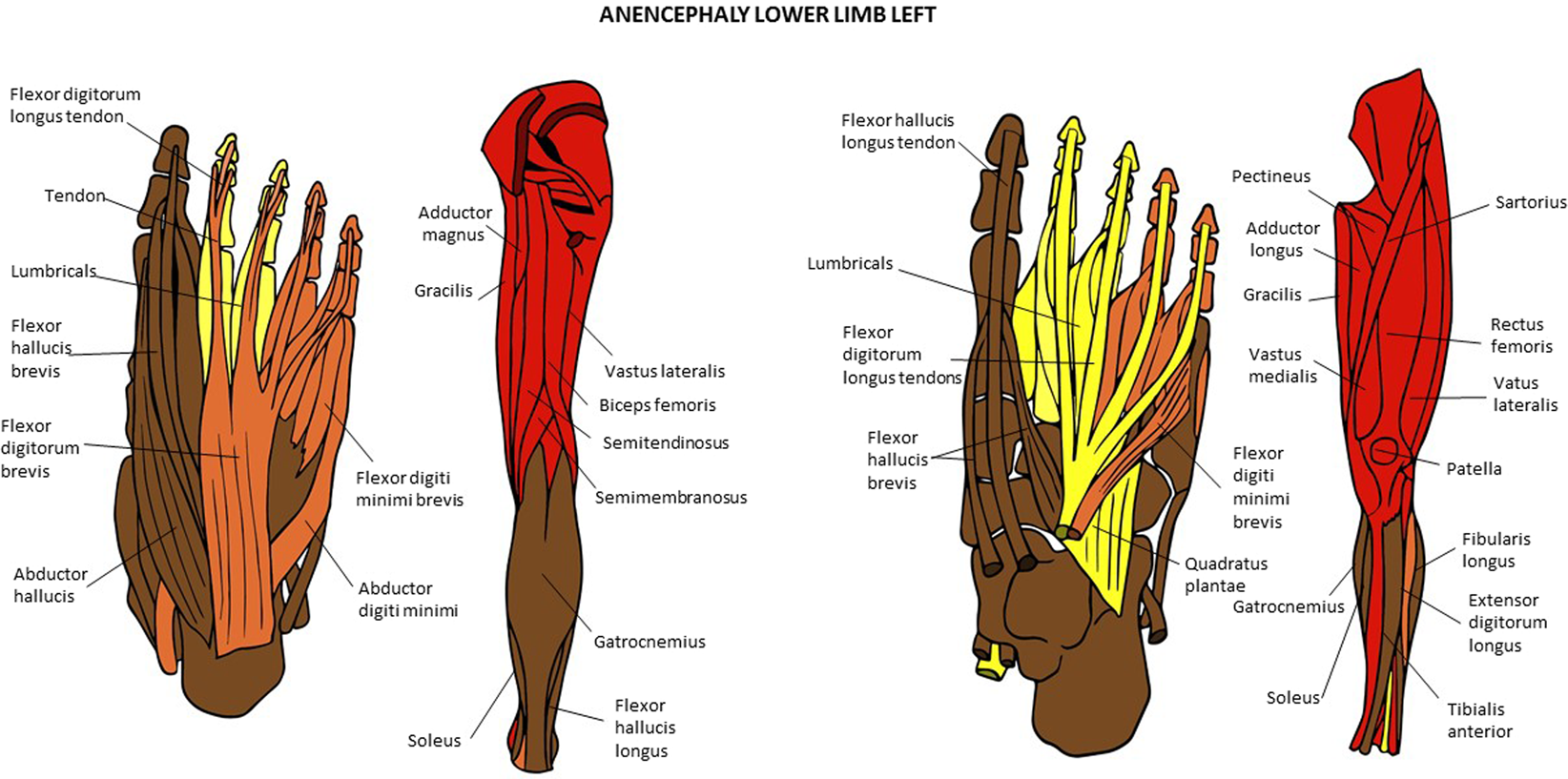

Musculoskeletal modules of the left hindlimb of the anencephaly fetus 1 identified using AnNA. Superficial ventral view of foot the left side, then posterior view of thigh and leg, then deep ventral view of foot, and then more to the right anterior view of thigh and leg. In brown, the module 1 of Table 23 (“digit 1/tarsals”); in red, the module 2 of Table 23 (“axial/gluteal, thigh”); in orange, the module 3 of Table 23 (“digits 4 & 5”); in yellow, the module 4 of Table 23 (“digits 2 & 3”).
