From: First use of anatomical networks to study modularity and integration of heads, forelimbs and hindlimbs in abnormal anencephalic and cyclopic vs normal human development

Figure 2

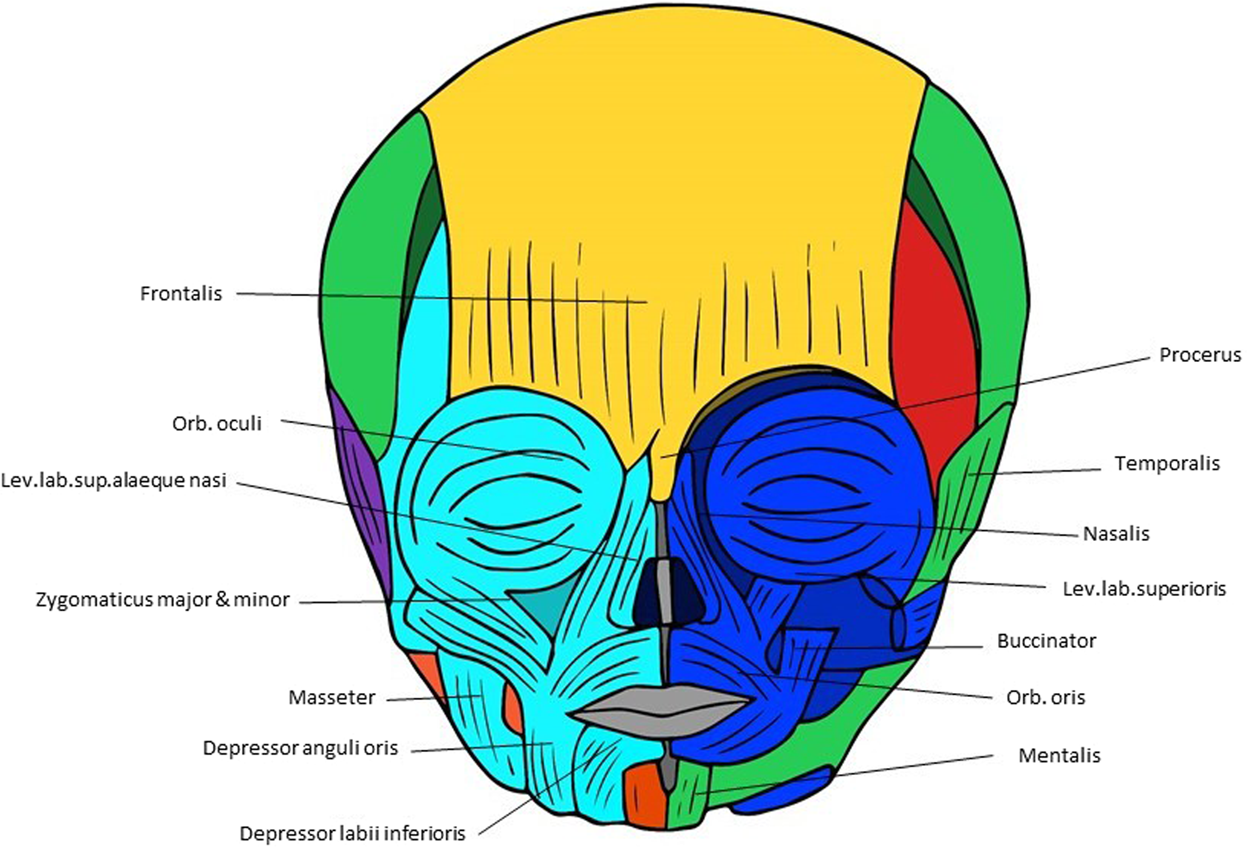

Musculoskeletal modules of the normal newborn head identified using AnNA. In purple, the module 1 of Table 4 (“occipital”); in green, the module 2 of Table 4 (“right facial-mastication-tongue”); in orange, the module 3 of Table 4 (“tongue”); in turquoise, the module 4 of Table 4 (“left eye-facial-oral-mastication”); in blue, the module 5 of Table 4 (“right eye-facial-oral”); in red, the module 6 of Table 4 (“eye-mastication”); in yellow, the module 7 of Table 4 (“frontalis + procerus”) (other modules of Table 4 not show here).
