Figure 9

From: First use of anatomical networks to study modularity and integration of heads, forelimbs and hindlimbs in abnormal anencephalic and cyclopic vs normal human development

Figure 9The alternative text for this image may have been generated using AI.

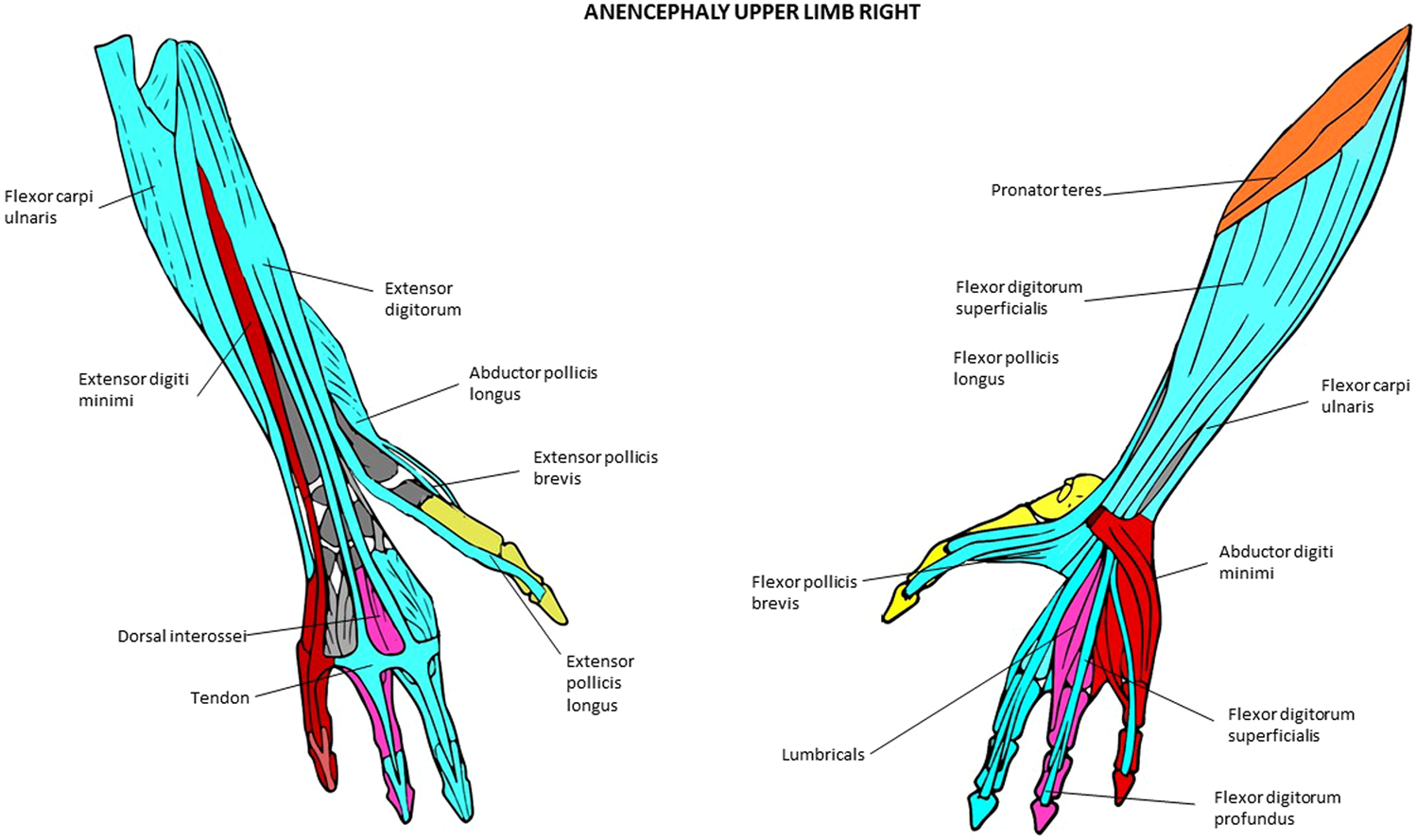

Musculoskeletal modules of the right forelimb of the anencephaly fetus 1 identified using AnNA. Dorsal view on the left side, ventral view on the right; note that the metacarpal 2 and all phalanges of digit 2 are absent or very reduced in size (see text and SI). In turquoise, the module 1 of Table 16 (“carpus/3rd digit”); in orange, the module 2 of Table 16 (“shoulder girdle/arm”); in red, the module 3 of Table 16 (“carpus/5th digit”); in yellow, the module 4 of Table 16 (“1st digit”); in pink, the module 6 of Table 16 (“4th digit”).
