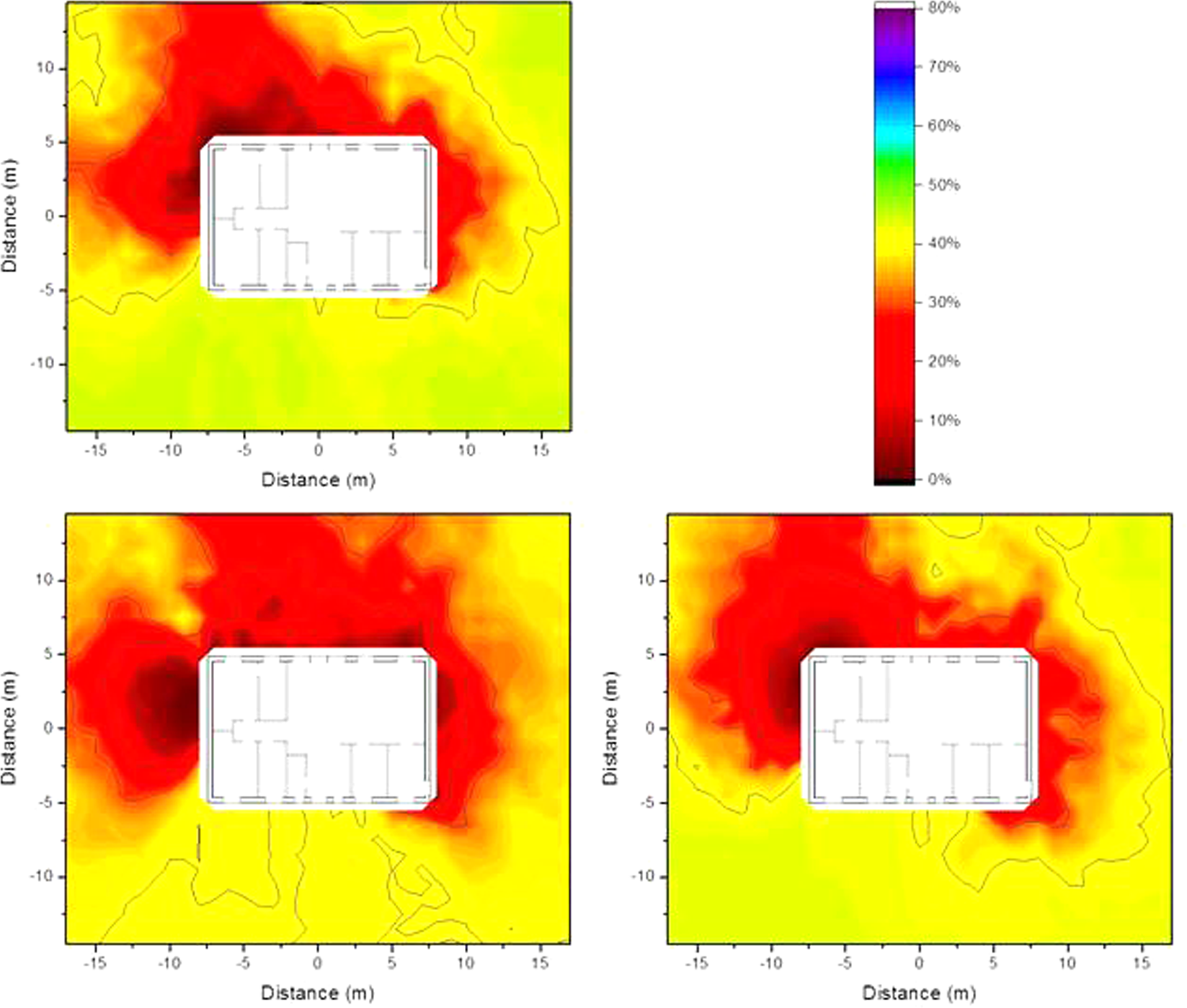

Figure 11
Isodose lines around the wooden house using typical resident occupancy factors for three different variability scenarios of 137Cs contamination, according to Fig. 10. The shading indicates the fraction of dose contribution to the observation point including the areas that are surrounded by the respective one. When the outside line for a certain dose reduction reaches the limit of the calculation grid, its shape might differ for a larger calculation grid.
