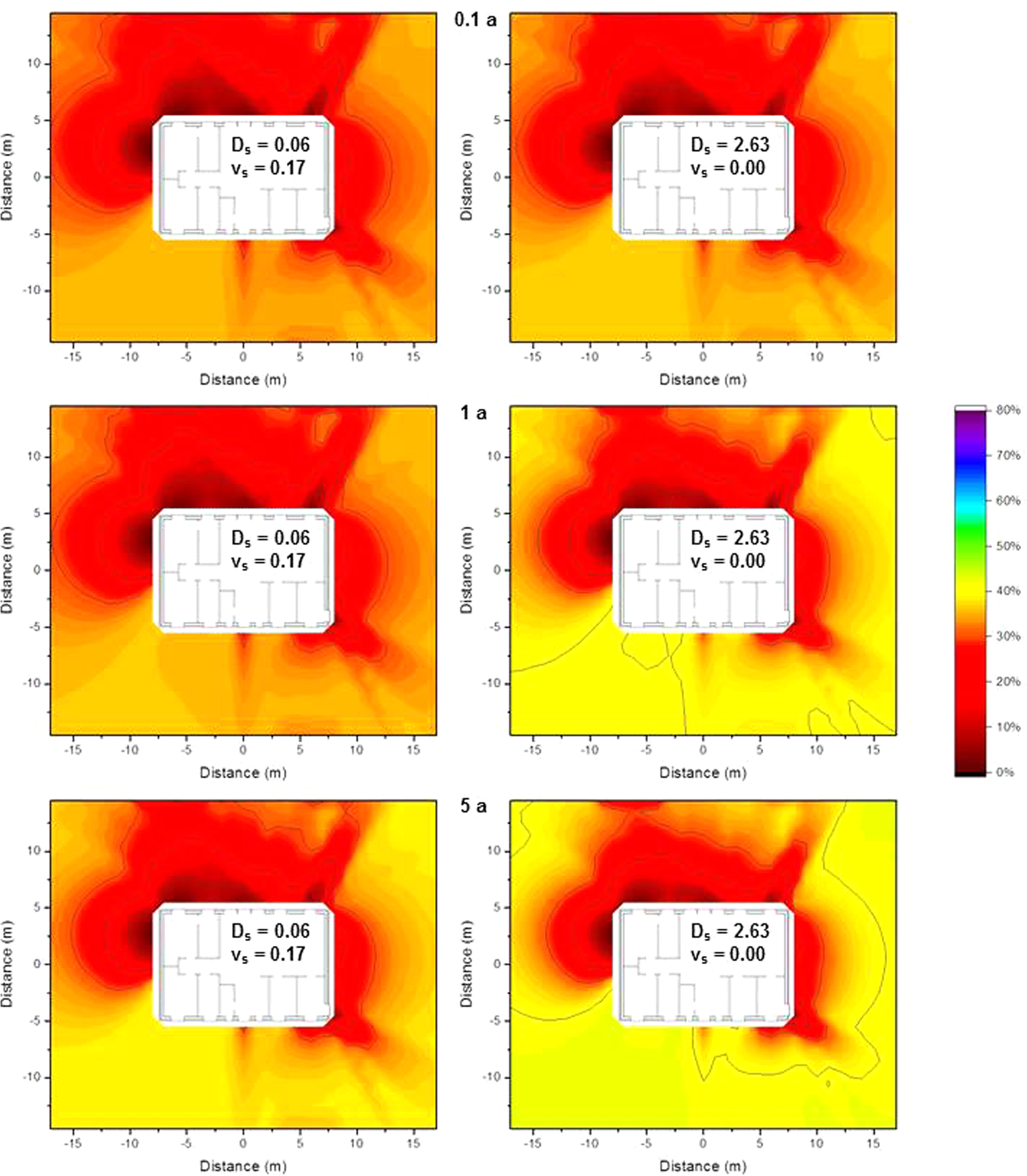

Figure 9
Isodose lines around the brick house using typical resident occupancy factors resulting from homogeneous 137Cs contamination for a vertical distribution, 0.1 years (top), 1 year (middle), and 5 years after deposition (bottom), based on the two most extreme parameter combinations determined for western Sweden11. The shading indicates the fraction of dose contribution at the observation point including the areas that are surrounded by the respective one. When the outside line for a certain dose reduction reaches the limit of the calculation grid, its shape might differ for a larger calculation grid.
