Figure 3 | Scientific Reports

Figure 3

From: Biomimetic Thermal-sensitive Multi-transform Actuator

Figure 3

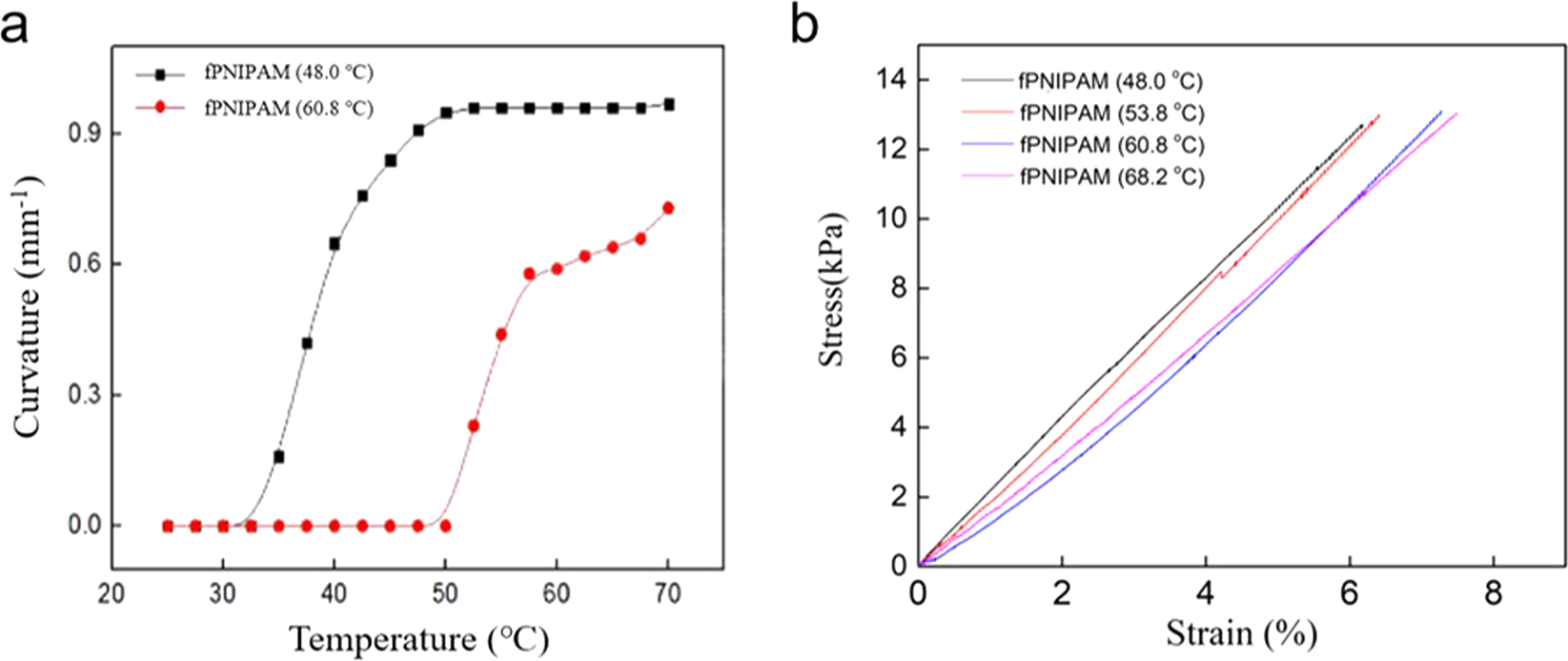

Comparison of bending curvature, LCST and mechanical properties of f-PNIPAM actuators. (a) Curvature as a function of temperature with the increase in curvature occurring near LCST; (b) Strain-stress curves of sheets fabricated with four f-PNIPAMs with distinctive LCSTs, as indicated.
