Figure 2
From: Electrospinning Fabricating Au/TiO2 Network-like Nanofibers as Visible Light Activated Photocatalyst

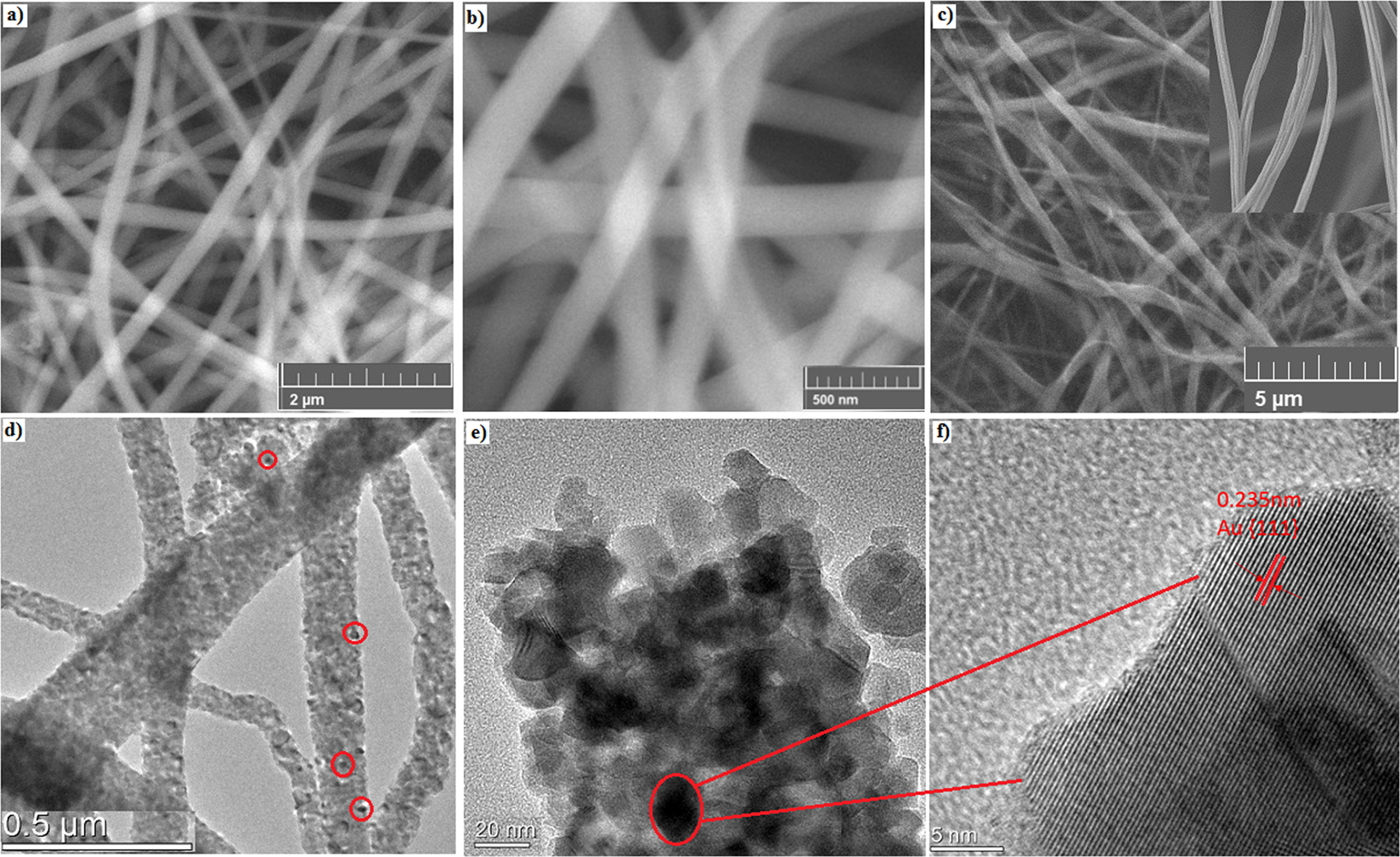

(a,b) SEM images of pure TiO2 with different magnifications; (c) SEM images of the sample Au(10)/TiO2, inset of (c) shows higher magnification; (d,e) TEM images of the sample Au(10)/TiO2 with different magnifications; (f) HRTEM image of the sample Au(10)/TiO2.
