Figure 6

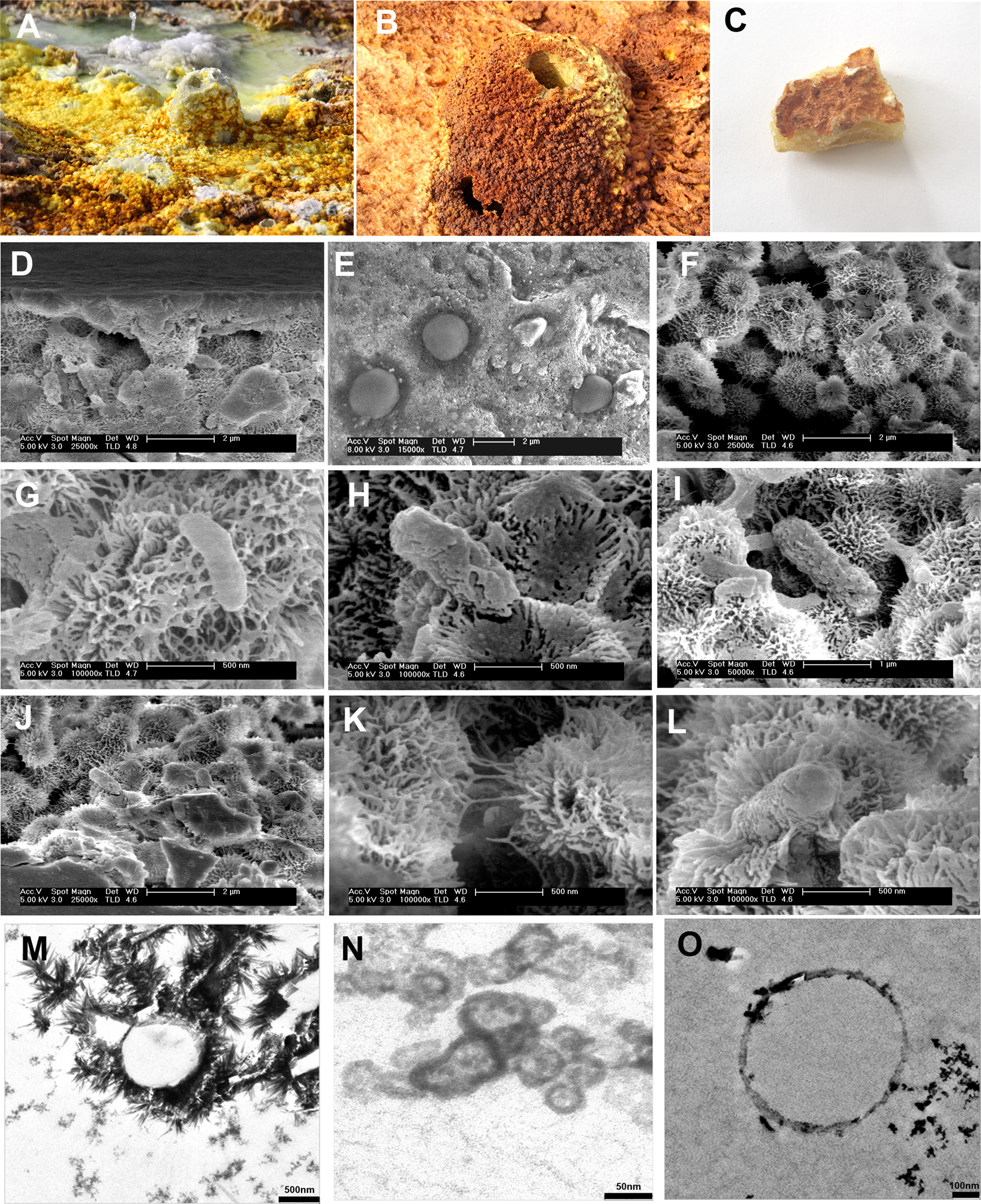

(A) General view of the sampling site, (B) the small chimneys (temperature of water 90 °C. (C) D9 sample from a small chimney in (A). (D–L) SEM and (M–O) Scanning TEM images of sample D9 showing the morphologies of ultra-small microorganisms entombed in the mineral layers.
