Figure 4 | Scientific Reports

Figure 4

From: Assessment of 213Bi-anti-EGFR MAb treatment efficacy in malignant cancer cells with [1-13C]pyruvate and [18F]FDG

Figure 4

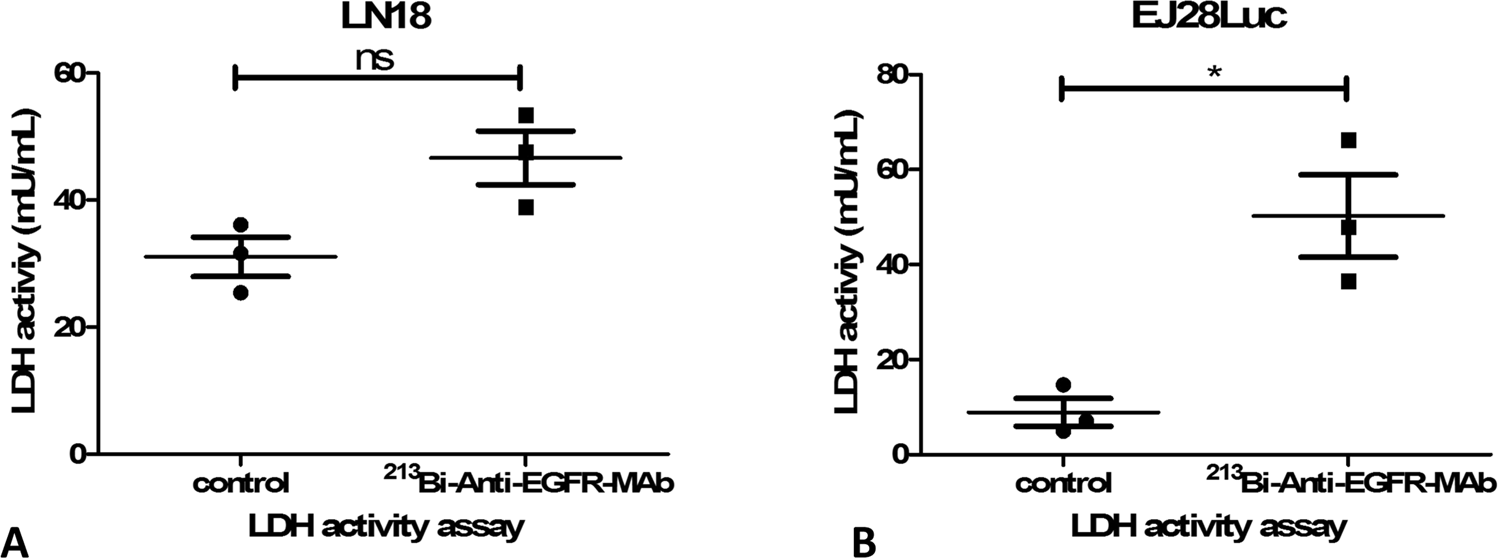

Lactate dehydrogenase activity (LDH) in cell culture media of LN18 (A) and EJ28Luc (B) cells 48 h after 213Bi-anti-EGFR-MAb treatment. LDH, as determined with a commercial assay kit, did significantly differ in untreated controls and 213Bi-anti-EGFR-MAb treated cells, in EJ28Luc but not in LN18 cells. 213Bi-anti-EGFR-MAb treatment induced an elevated LDH activity in both cell lines indicative of cell death as LDH normally is stored intracellular but not in the extracellular compartment. Displayed are mean ± SD.
