Figure 7

From: Development of a DNA isolation device using poly(3,4-dihydroxy-L-phenylalanine)-coated swab for on-site molecular diagnostics

Figure 7

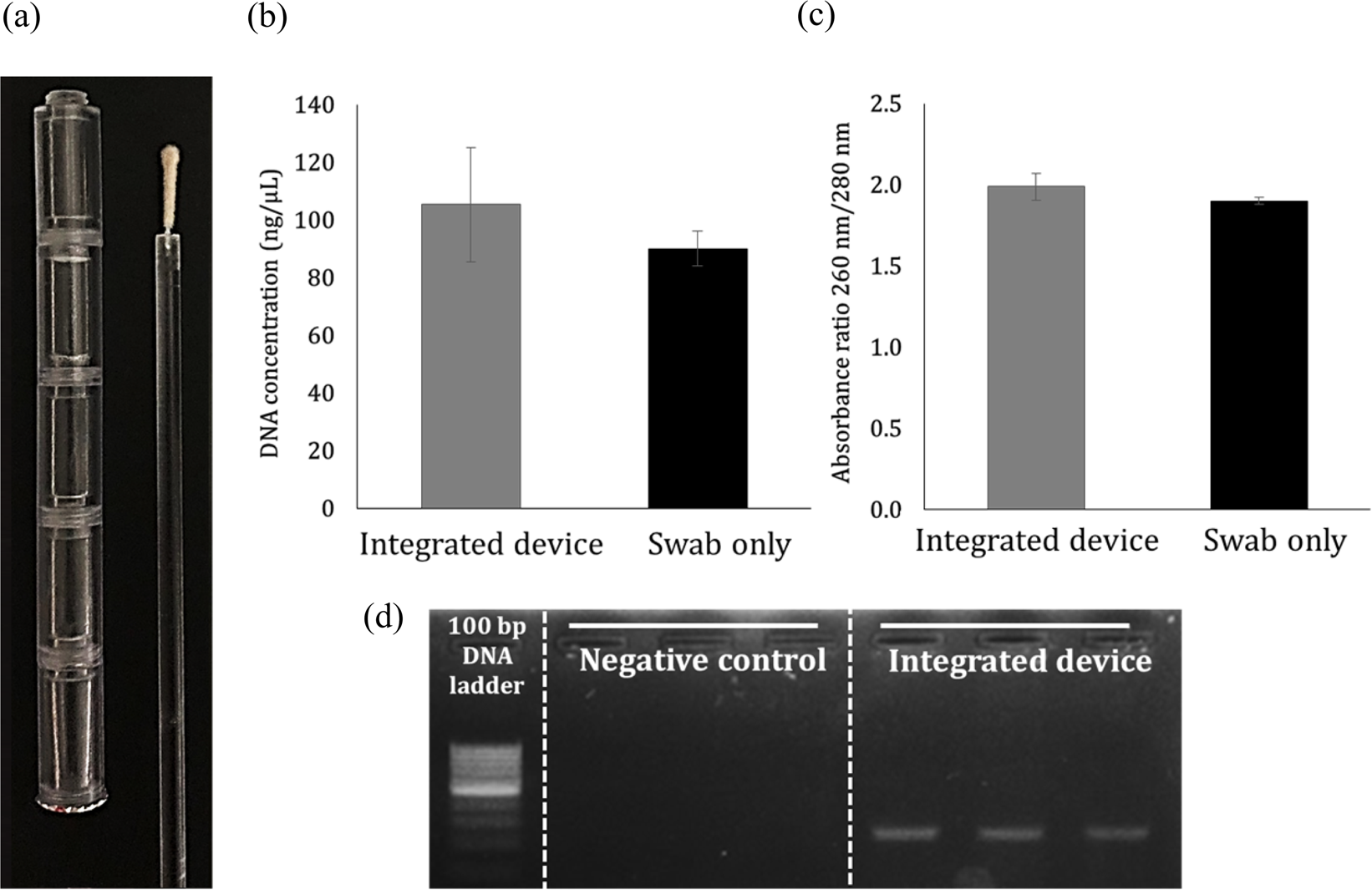

DNA isolation using integrated DNA isolation device. (a) Photograph of the actual fabricated device, (b) isolated DNA concentration and (c) its absorbance ratios of 260 nm/280 nm using the whole device compared with that using the only modified swab, and (d) agarose gel electrophoresis image of GAPDH PCR product using the isolated DNA.
