Figure 4
From: Learning from droplet flows in microfluidic channels using deep neural networks

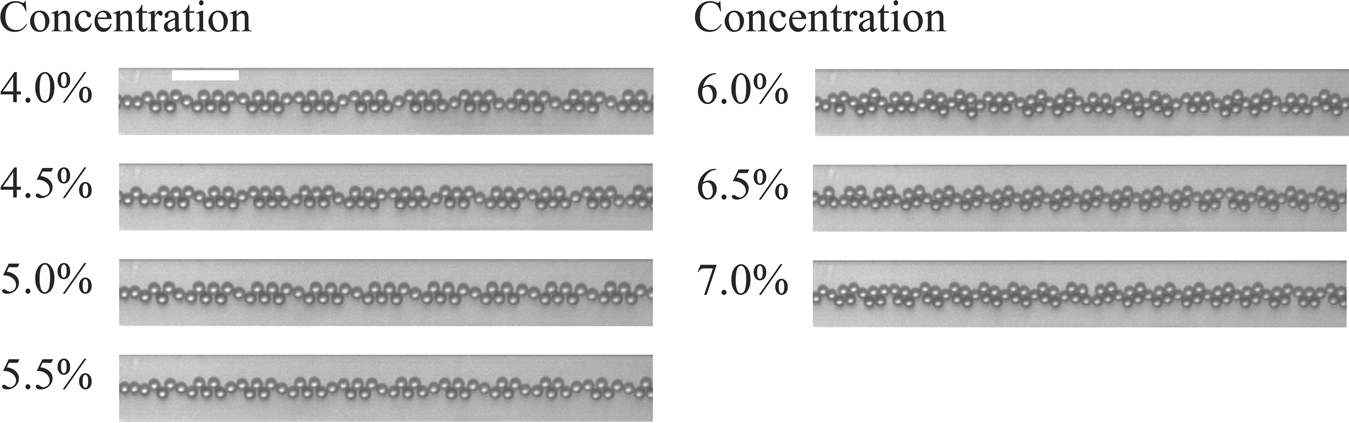

Images of droplet generation at different concentrations of the water-IPA solution where the concentration of the water-IPA solution is changing from 4.0% to 7.0% with 0.5% increment. The water-IPA and the oil flow rates are 0.2 ml/h and 1.0 ml/h, respectively. The scale bar is 100 μm.
