Figure 2
From: Constructing a three-dimensional graphene structure via bonding layers by ion beam irradiation

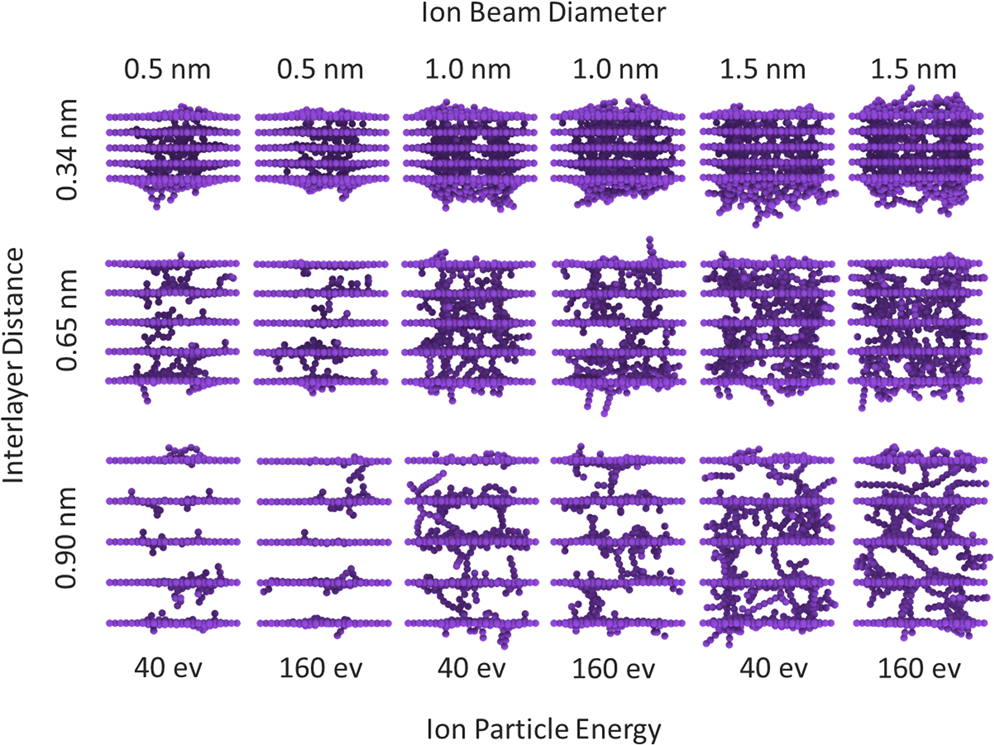

Image of all configurations created after the irradiation process on five-layer stacks of the graphene sheet. The upper axis represents the diameter of the beam, the left axis shows the distance between the layers in the stack and the lower axis indicates the energy of the used beam.
