From: Dynamic evolution of mitochondrial genomes in Trebouxiophyceae, including the first completely assembled mtDNA from a lichen-symbiont microalga (Trebouxia sp. TR9)

Figure 6

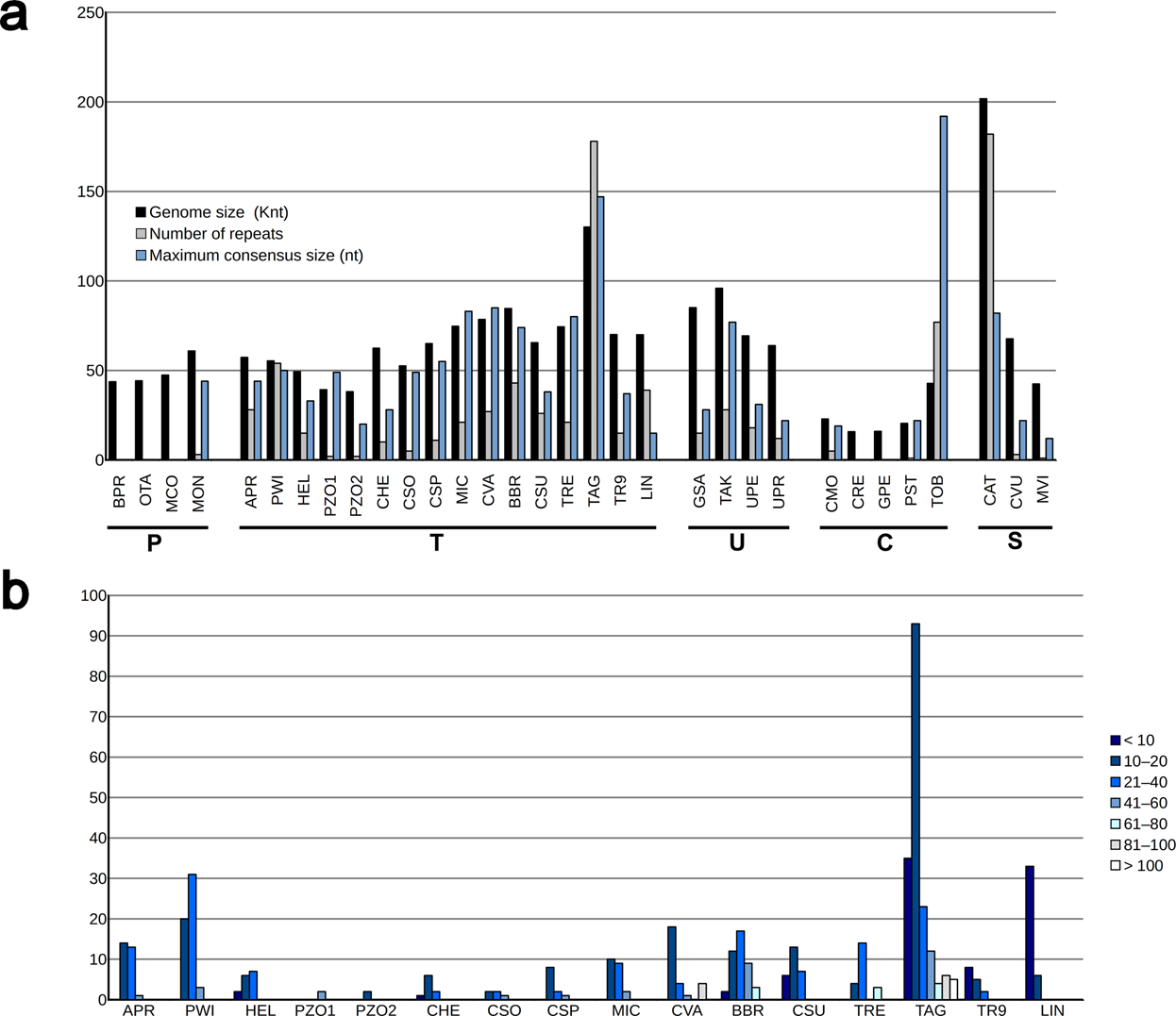

Tandem repeats in the green algal mtDNAs examined in this study. (a) Genome sizes, number of repeats found and maximum consensus size. (b) Frequency of tandem repeats by length in Trebouxiophyceae. The systematic classification is indicated at the bottom (P: Prasinophyceae, T: Trebouxiophyceae, U: Ulvophyceae, C: Chlorophyceae, S: Streptophyta).
