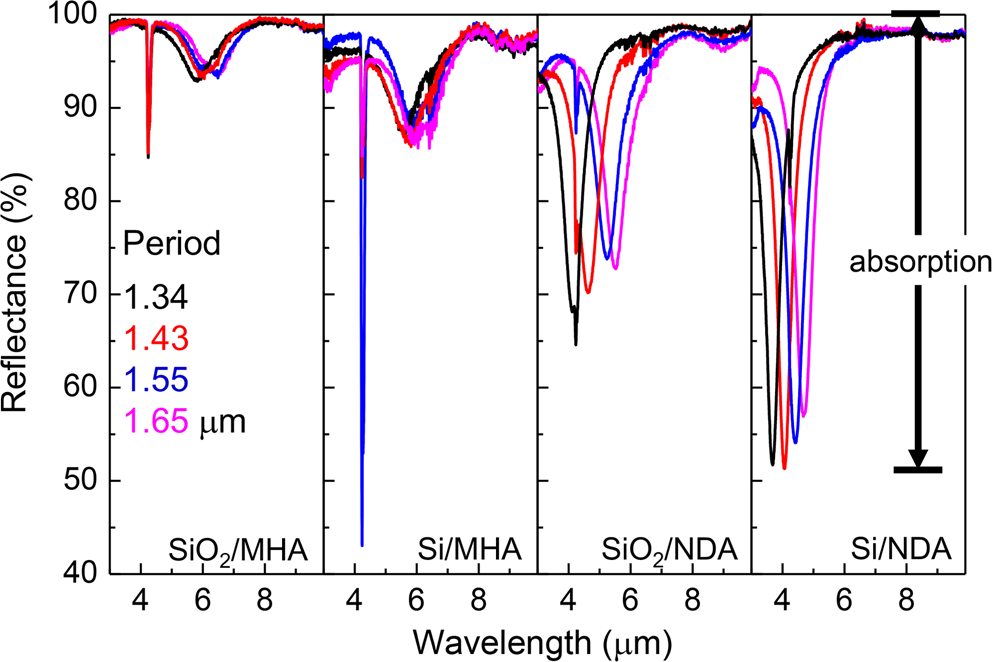

Figure 4
From: Kirchhoff’s metasurfaces towards efficient photo-thermal energy conversion
Infrared radiation reflectance spectra of Au-based PPAs with NDA and MHA patterns of different periods, correspondingly produced using Si and SiO2 insulators. The sharp spectral artifact at 4.3 μm is due to CO2 absorption.
