Figure 1

From: Mass spectra alignment using virtual lock-masses

Figure 1

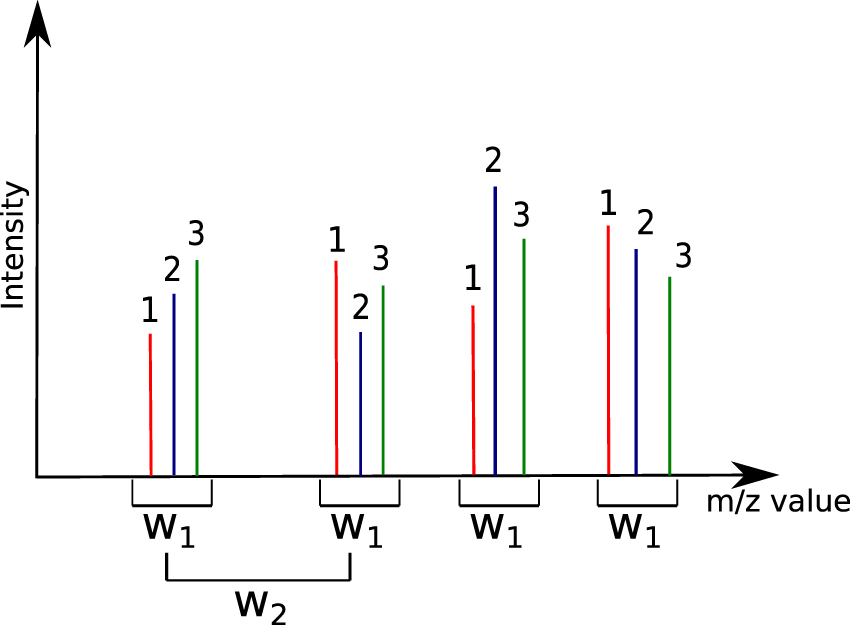

Definition of window size for the detection of VLM peaks. The peaks identified as 1, 2, and 3 are presumed to originate from three different spectra. Window size w1 correctly detects four VLM groups. Window size w2 however is too wide and will detect ambiguous and erroneous groups. Moreover, w2 will detect several overlapping VLM groups.
