Figure 5 | Scientific Reports

Figure 5

From: Stock-specific chemical brood signals are induced by Varroa and Deformed Wing Virus, and elicit hygienic response in the honey bee

Figure 5

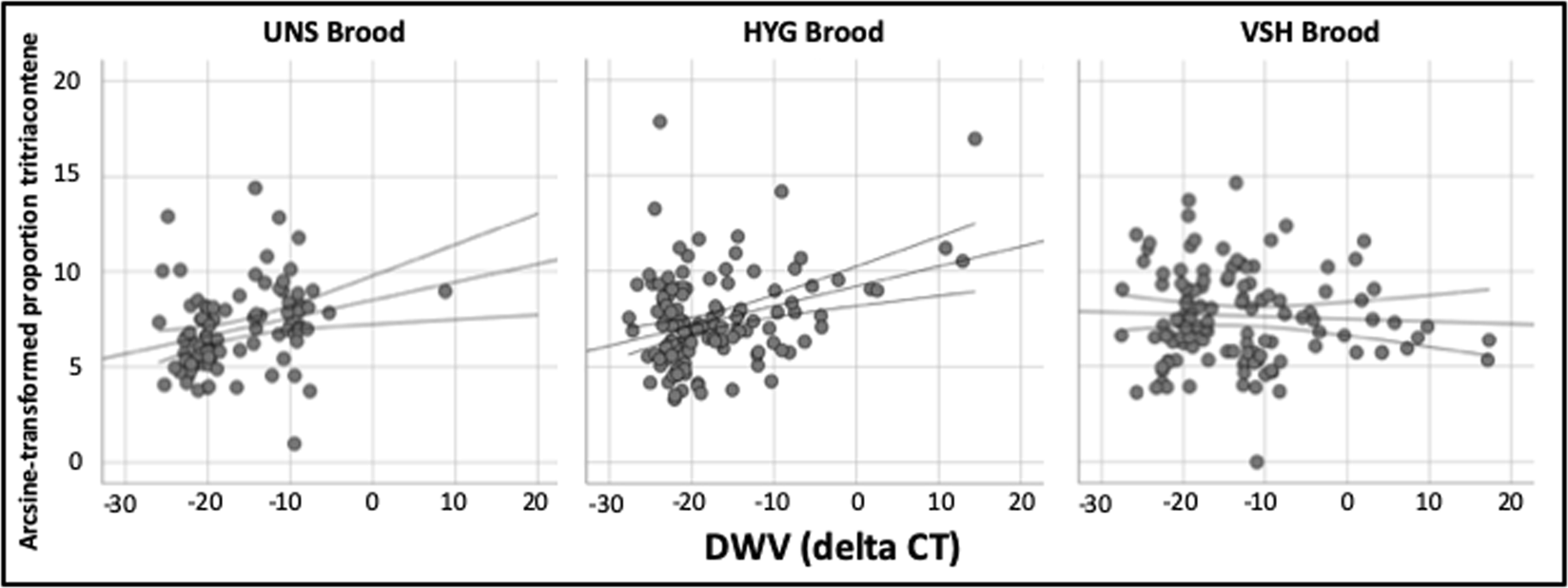

DWV vs. tritriacontene proportion in UNS, HYG, and VSH brood, from Experiment 2. Circles represent individual brood. Lines of best fit with 95% CI intervals of the mean are provided. Significant correlations were observed for CON (Pearson’s R = 0.263, n = 91, p = 0.012) and HYG (R = 0.322, n = 126, p < 0.001) but not VSH (R = −0.040, n = 124, p = 0.659) brood. Tritriacontene is shown as an example because it was the only chemical elevated in response to stressors in all three brood stocks.
