Figure 3

From: Comparative proteomic analysis provides insights into the complex responses to Pseudoperonospora cubensis infection of cucumber (Cucumis sativus L.)

Figure 3

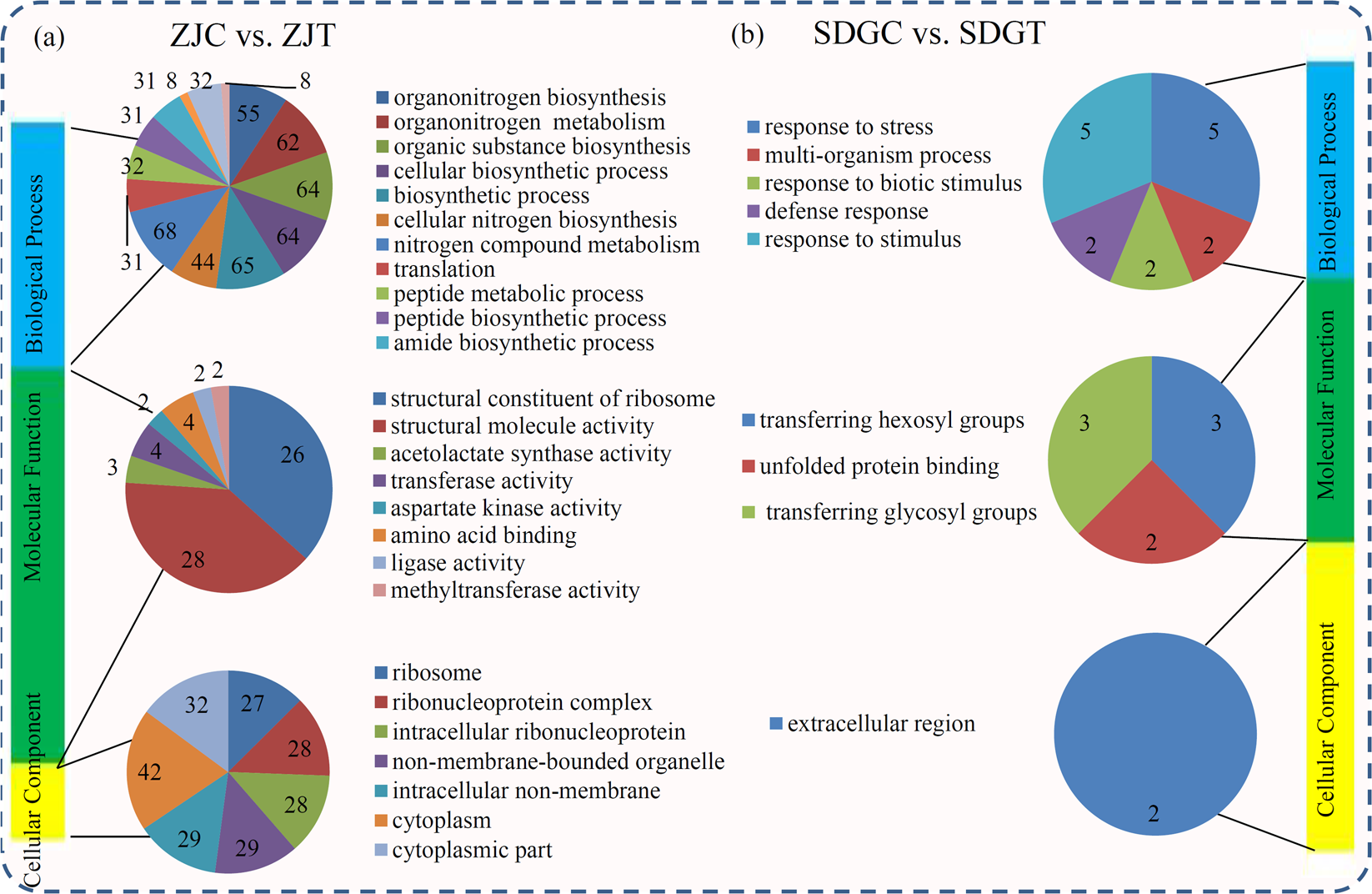

GO enrichment analysis of the DAPs in different comparisons. GO terms distribution of the DAPs in the ZJT vs. ZJC comparison (a) and the SDGT vs. SDGC comparison (b). Different color blocks represent different terms, including cellular component, molecular function, and biological process. Number of the DAPs in each second level term was showed in a pie chart.
