Figure 4

From: Shared Molecular Signatures Across Neurodegenerative Diseases and Herpes Virus Infections Highlights Potential Mechanisms for Maladaptive Innate Immune Responses

Figure 4

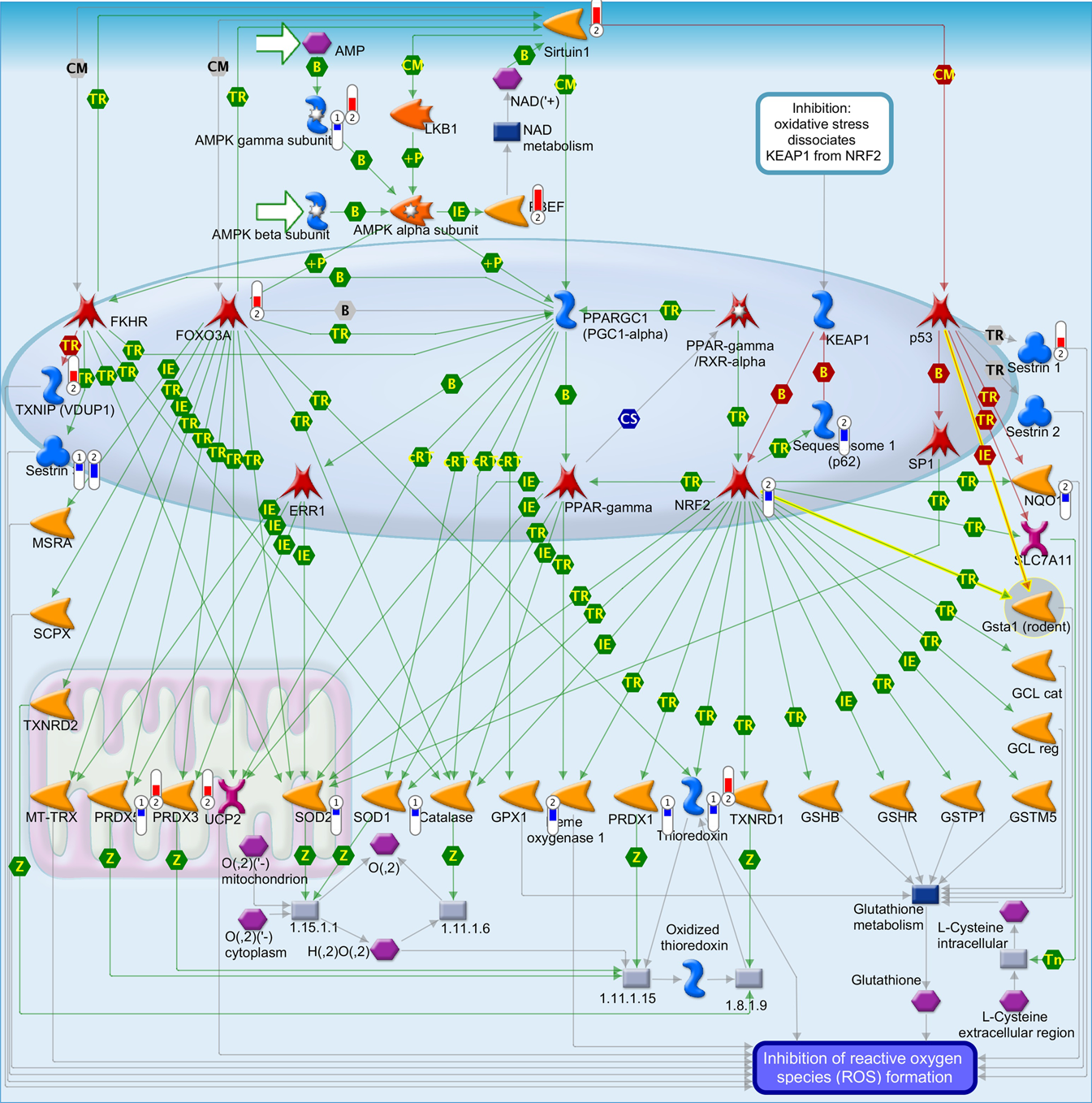

Pathway map for “Role of Sirtuin1 and PGC1-alpha in activation of antioxidant defense system”. Significant up-regulation of genes is denoted as up-pointing bars colored in red, and significant down-regulation of genes is denoted as down-pointing bars colored in blue. The height of the colored bar represents to the magnitude of the gene expression changes (fold change) between cases and controls.
