From: Studies of Black Diamond as an antibacterial surface for Gram Negative bacteria: the interplay between chemical and mechanical bactericidal activity

Figure 5

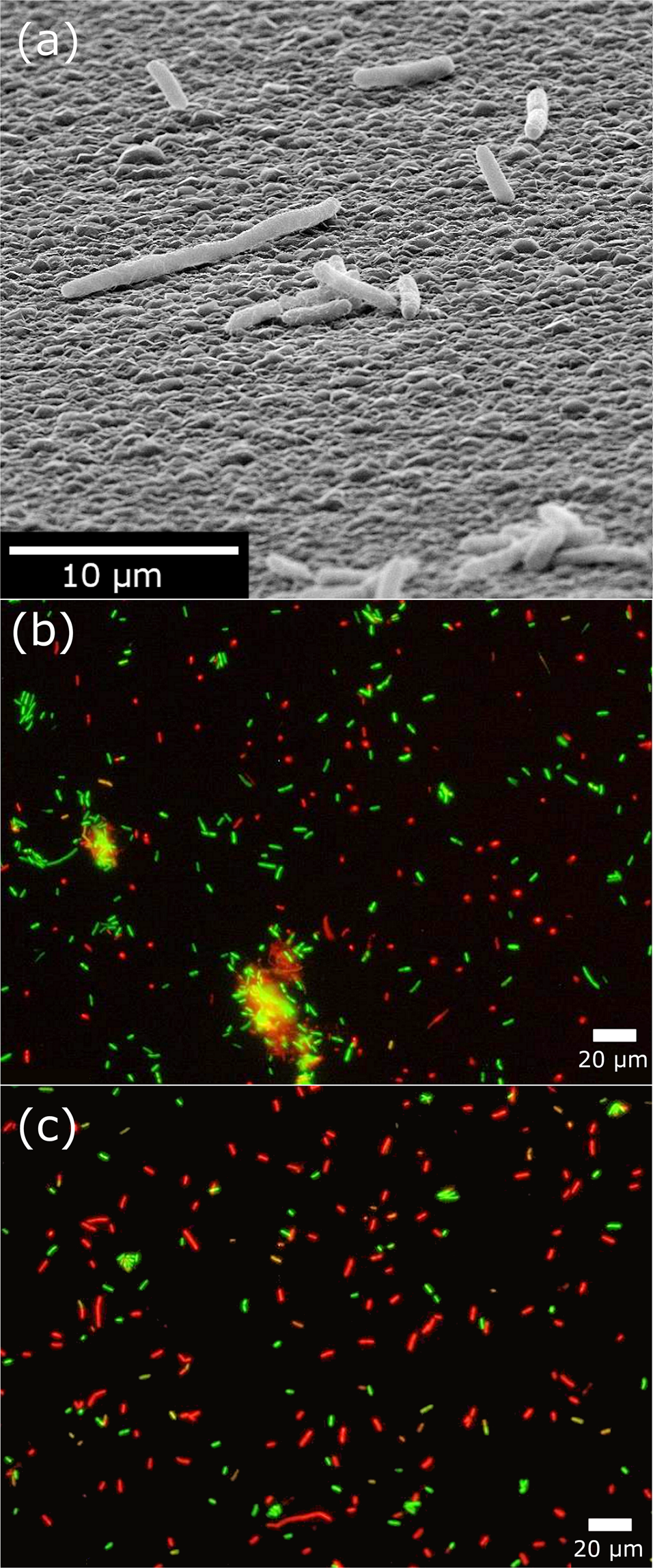

(a) SEM image of bacterial cells adhered to the flat diamond sample showing instances of cell aggregation. Representative fluorescence micrographs of (b) flat diamond thin film compared to (c) bD, showing the reduction in cell aggregates on the nanostructures. Live bacterial cells were stained green; red staining indicates dead cells.
