From: Studies of Black Diamond as an antibacterial surface for Gram Negative bacteria: the interplay between chemical and mechanical bactericidal activity

Figure 6

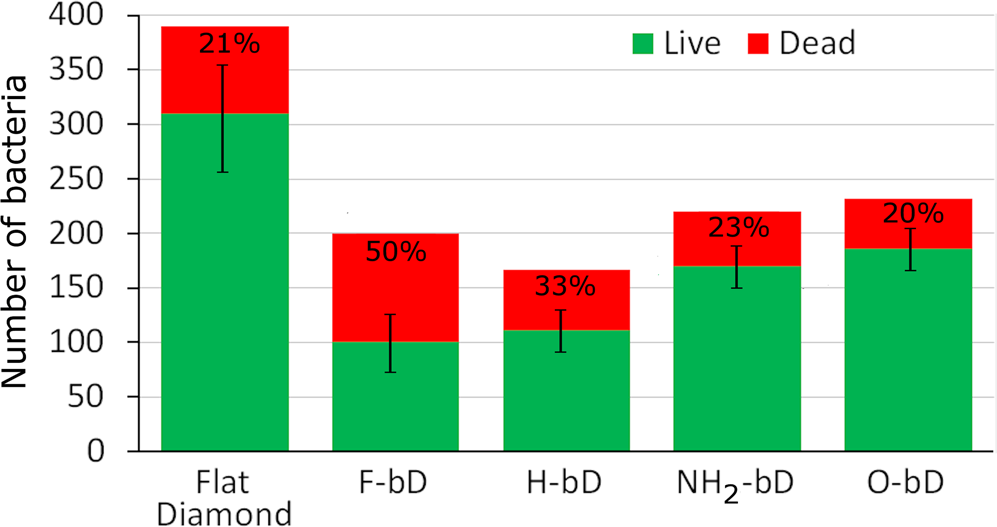

Bacterial viability on surfaces with the different terminations, compared to that of the H-terminated flat diamond control. Numbers of live (green) and dead (red) cells are indicated, together with the corresponding percentage of dead cells. The uncertainty in the measurements are shown as error bars representing one standard deviation of the number of dead cells based upon 4 repeats of the experiment.
